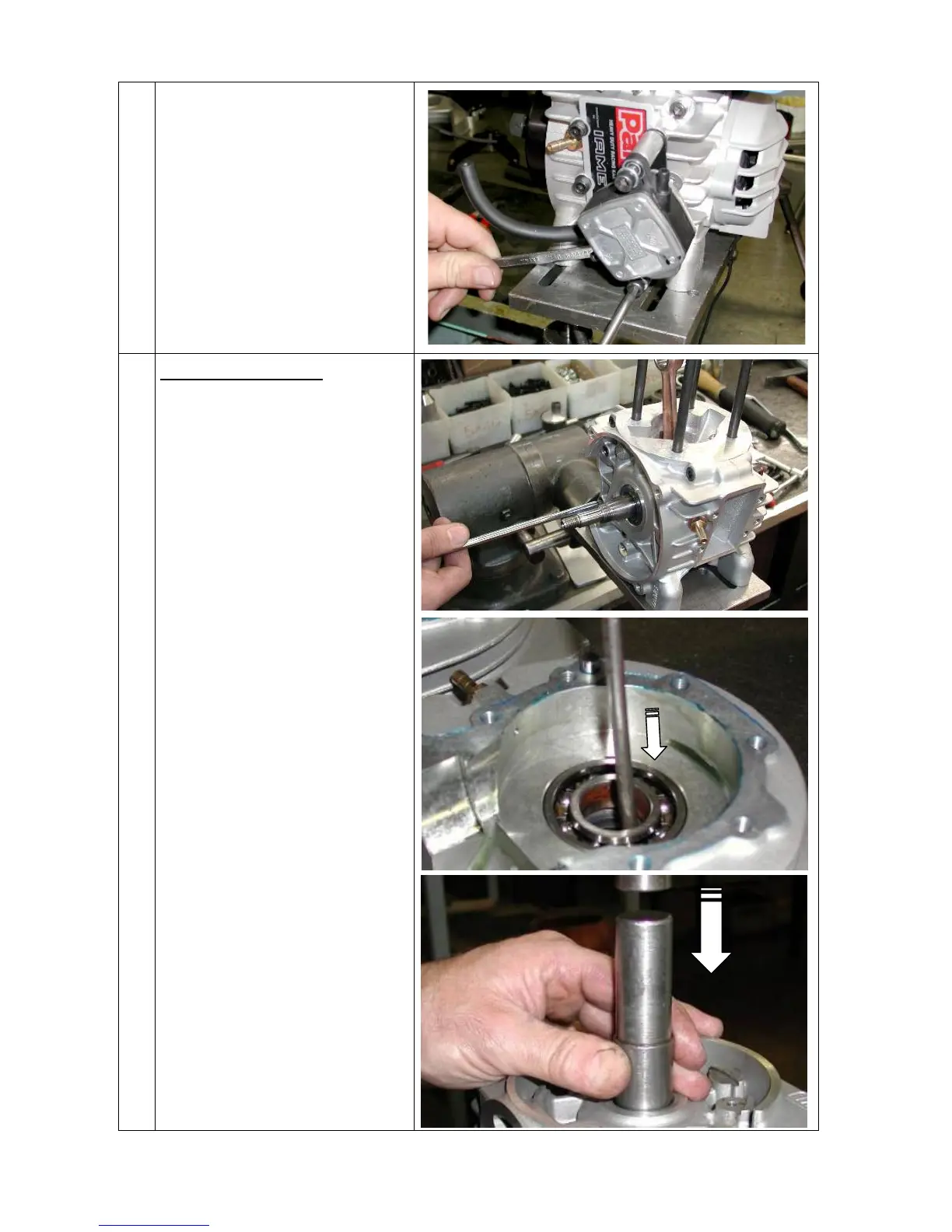

REMOVE THE PUMP FIXING SCREWS
(see Fig.20).
2 SCREWS M6X45
1 NUT M6
(5mm ALLEN T TYPE)
(6 POINT WRENCH - 10mm)
11.
OPENING THE CRANKCASE:
-REMOVE 7 FIXING SCREWS
(see Fig.21).
4 SCREWS M6X40
3 SCREWS M6X50
(5mm ALLEN T TYPE)
(PLASTIC MALLET)
-OPEN THE CRANKCASE (USING A PLASTIC
MALLET).
(AVOID CRANKSHAFT FROM FALLING).
-REMOVE OIL SEALS
USING A SCREWDRIVER (see Fig.22).
- REMOVE BEARINGS (IF NECESSARY)
HEAT HALFCRANKCASES AT 70°C
(see Fig. 23).
USE TOOL AS PER DRAW. S725/3.
-REMOVE SHIMS.
