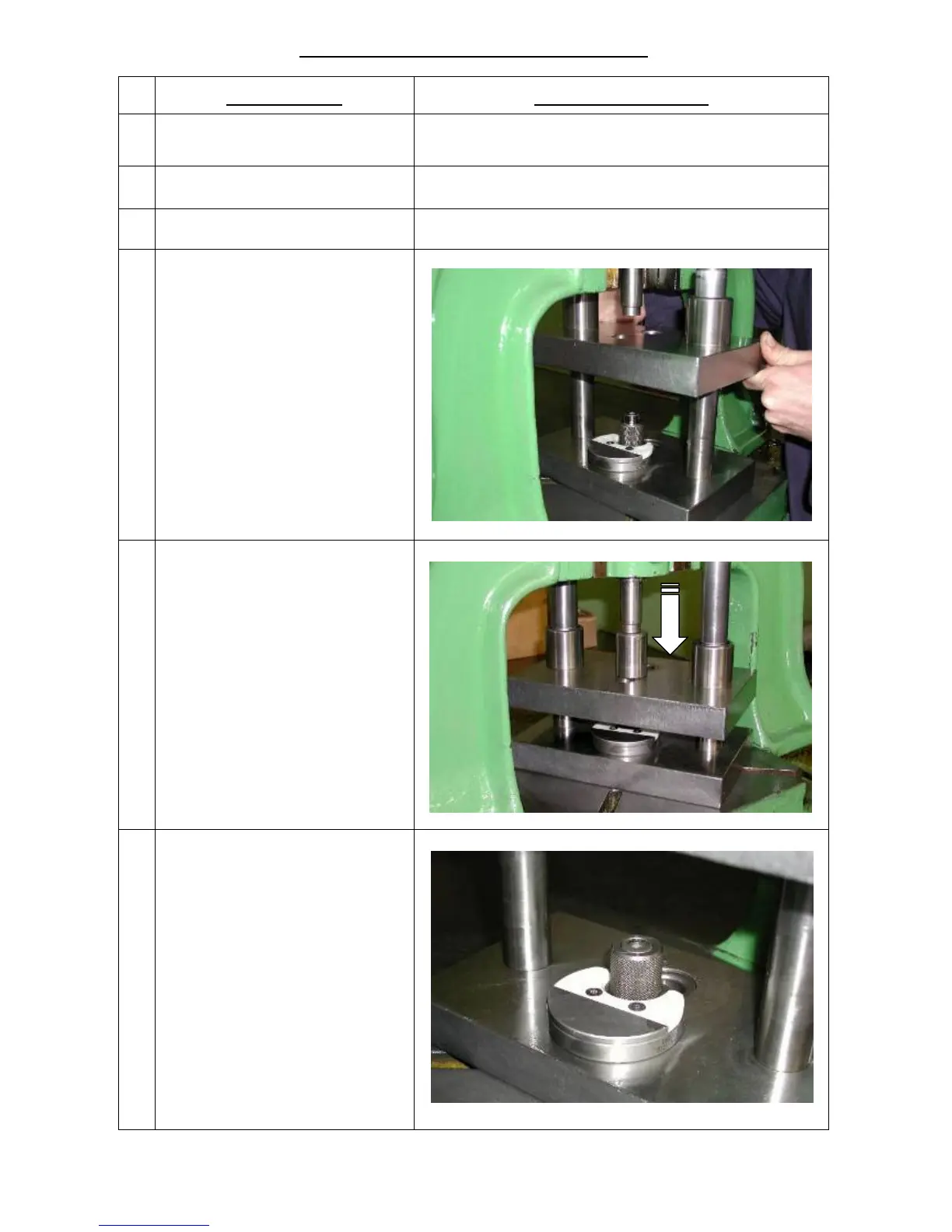

2.2 – CRANKSHAFT ASSEMBLY
OPERATION TOOLS REQUIRED
1.
PLACE THE CRANKSHAFT ASSEMBLY
TOOL (P.N. 10110-C) UNDER THE PRESS,
VERTICALLY
- 5 MeT PRESS
- CRANKSHAFT ASSEMBLY KIT: P.N. 10110-C
2.
PLACE THE CRANKSHAFT HALF INTO THE
ASSEMBLY TOOL.
3.
OIL CRANKPIN AND CRANKPIN HOLE ON
CRANKSHAFT HALF.
4.
PLACE CRANKPIN WITH CRANKPIN BUSH
(P.N. 10150) ON CRANKSHAFT HALF
(see Fig.1).
5.
BRING UPPER PLATE OF TOOL IN
CONTACT WITH CRANPKIN (see Fig.2).
6.
PROGRESSIVELY PRESS UNTIL
CRANKPIN IS COMPLETELY DRIVEN IN
(see Fig. 3).
Fi
g
.1
Fi
g
.2
Fi
g
.3
