MAN-045 ING
10
7.

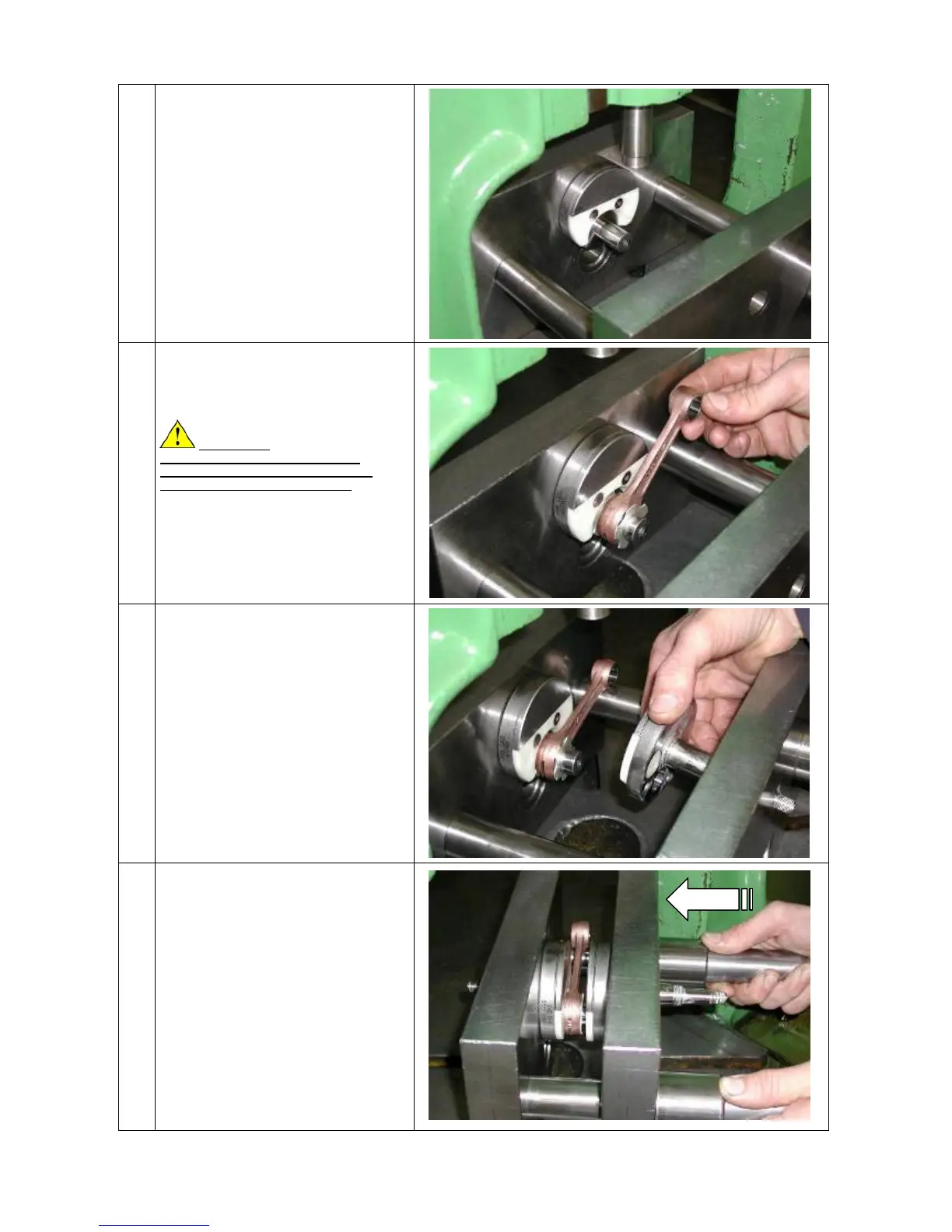

EXTRACT BUSH FROM CRANKPIN AND
PUT TOOL IN HORIZONTAL POSITION (see
Fig.4).
8.
INSERT ON CRANKPIN (OIL CRANKPIN):
-CONROD WITH ROLLER CAGE AND
WASHERS (see Fig.5).
ATTENTION:
ROLLERS ARE FREE IN THE CAGE.
PREVENT ROLLERS FROM FALLING,
WHEN INSERTING ON CRANKPIN.
9.
PLACE SECOND CRANKSHAFT HALF IN
THE SEAT OF THE COUNTERPLATE
(see Fig.6).
10.
BRING THE TWO PLATES CLOSE UNTIL
THE TOOL IS HAND PRESSED
(see Fig.7).
