IAME Parilla MINI SWIFT - 5 Mm allen T TYPE

MAN-045 ING
13

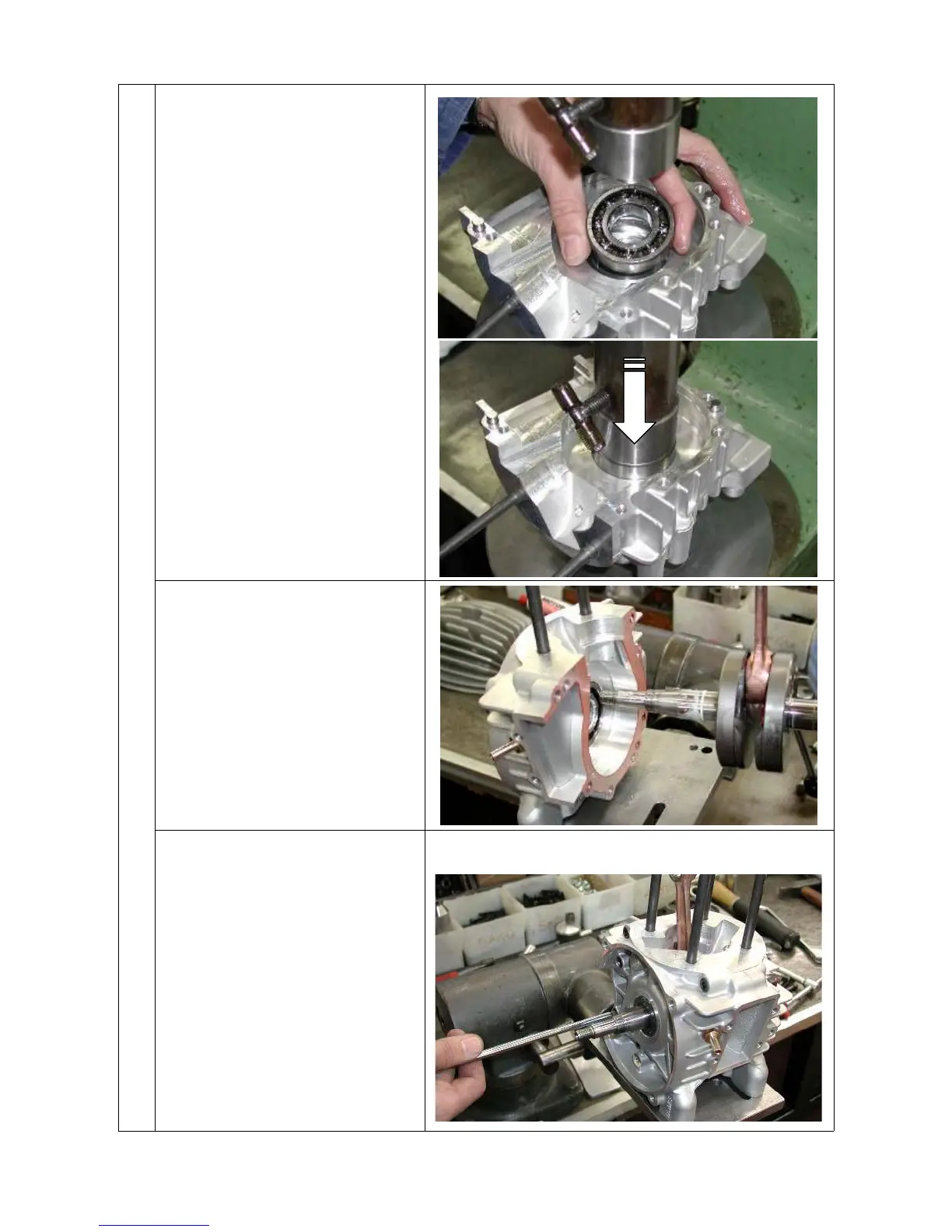

d) INSERT BALL-BEARINGS TO BE ON
UPPER SIDE AND OIL WHEN
ASSEMBLING .
USE TOOL AS PER DRAWING S725/3
(see Fig.2/3).
-SPECIAL TOOL AS PER DRAW. S725/3
e) INSERT CRANKSHAFT AFTER OILING
CRANKSHAFT SEAT IN CRANKCASE.
CRANKSHAFT MUST BE IN SAME
POSITION AS IN ORIGINAL
INSTALLATION (see Fig.4).
f) ASSEMBLE CRANKCASE HALVES
-n°4 SCREWS M6X40
-n°3 SCREWS M6X50
(see Fig.5).
- 5mm ALLEN T TYPE –CROSS PATTERN (SEE DRAWING)
TORQUE AT 10 Nm MAX. (90 in-lb)
Fi
g
.2
Fi
g
.3
Fi
g
.4
Fi
g
.5
