MAN-045 ING
14

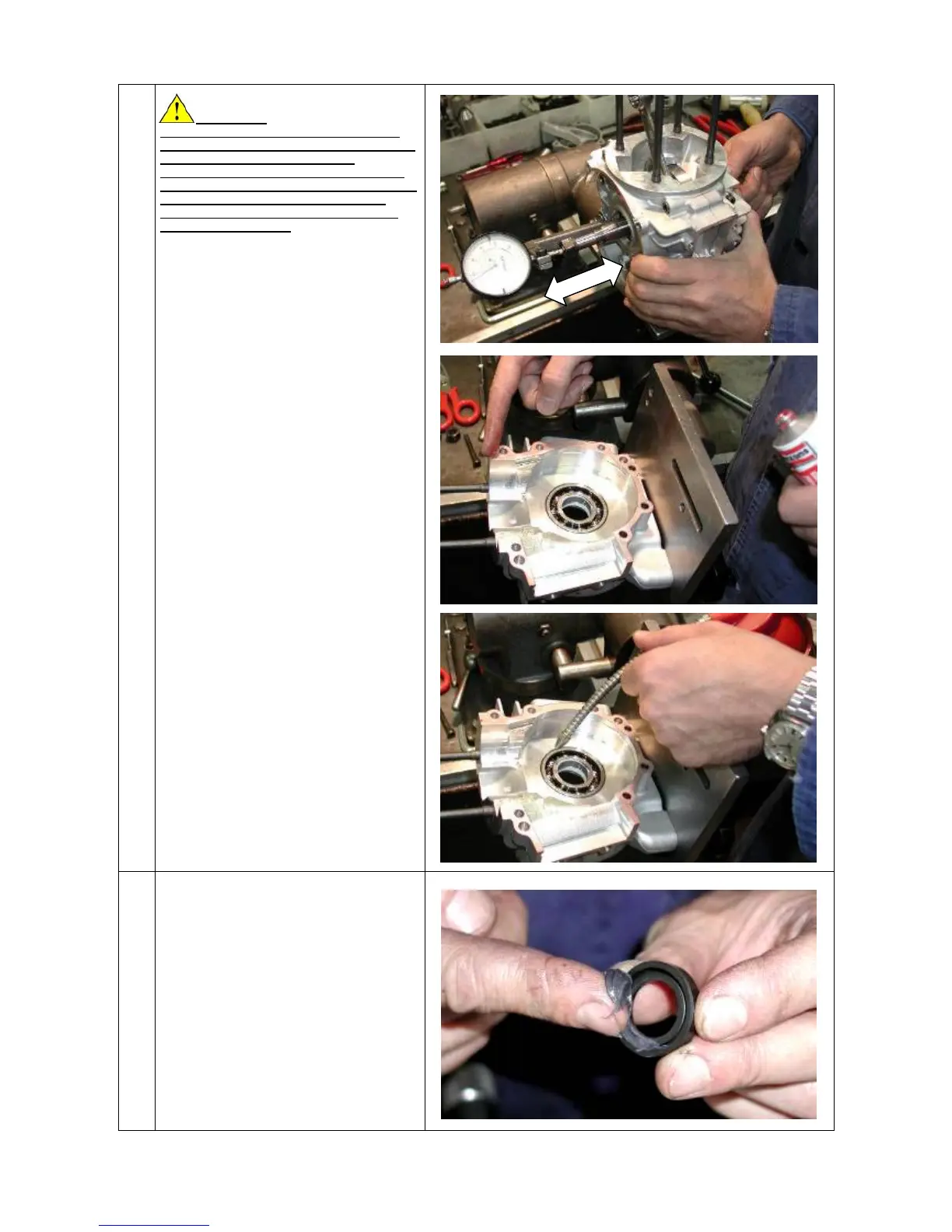

ATTENTION:
AS FIRST STEP, ASSEMBLE CRANKCASE
WITH 4 SCREWS AND CHECK CRANKSHAFT
AXIAL PLAY TO BE 0.20 ±0.05mm.
IF LOWER OR HIGHER, DISASSEMBLE THE
CRANKCASE, EXTRACT THE BEARINGS AND
USE DIFFERENT SHIMS (0.10/0.15/0.20).
TO RECOVER THE PLAY, SHIMS MUST BE
EQUALLY POSITIONED (see Fig.6).
BEFORE CLOSING DEFINITIVELY, APPLY
FLUID GASKET (Motorseal or equivalent) ON
CRANKCASE HALVES, AFTER CAREFULLY
CLEANING THE SURFACE WITH DILUENT.
CLEAN EVENTUAL EXCESS OF PRODUCT
(see Fig.7).
OIL CRANKSHAFT SEAT BEFORE
ASSEMBLING (see Fig.8).
2.
APPLY SPECIAL LUBRICANT ON OIL SEAL
LIPS
(see Fig.9).
-SPECIAL TOOL AS PER DRAWING S725/3
