MAN-045 ING
2

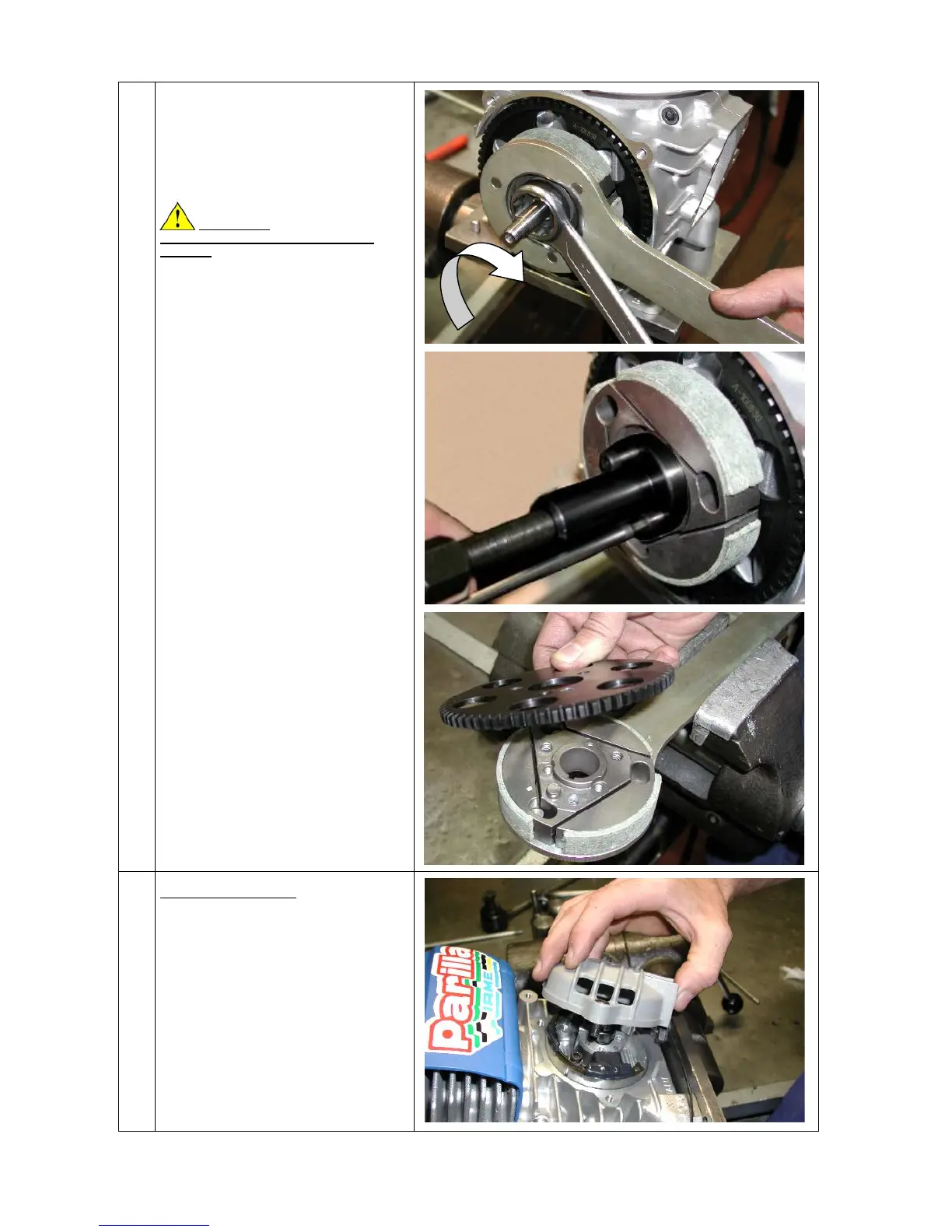

- REMOVE PISTON FITTING AND USING
CLUTCH WRENCH REMOVE THE FIXING
NUT.
(see Fig.4)
(CLUTCH WRENCH: P.N. 10270)
(12 POINT WRENCH - 24mm)
ATTENTION:
TURN CLOCKWISE AS NUT HAS LEFT
THREAD.
-REMOVE SAFETY WASHER.
-REMOVE CLUTCH FROM THE
CRANKSHAFT USING THE CLUTCH
DISASSEMBLY TOOL
(see Fig.5).
(CLUTCH DISASSEMBLY TOOL :
P.N. B-55614-C)
(12 POINT WRENCH - 19mm)
-REMOVE KEY FROM SHAFT SEAT.
-REMOVE STARTER RING FROM CLUTCH.
3 SCREWS M6 (see Fig.6).
(12 POINT WRENCH - 10mm).
3.
REMOVE THE IGNITION:
-REMOVE THE IGNITION COVER
3 SCREWS M6X18 (see Fig.7).
( 4mm ALLEN T -TYPE)
Fi
