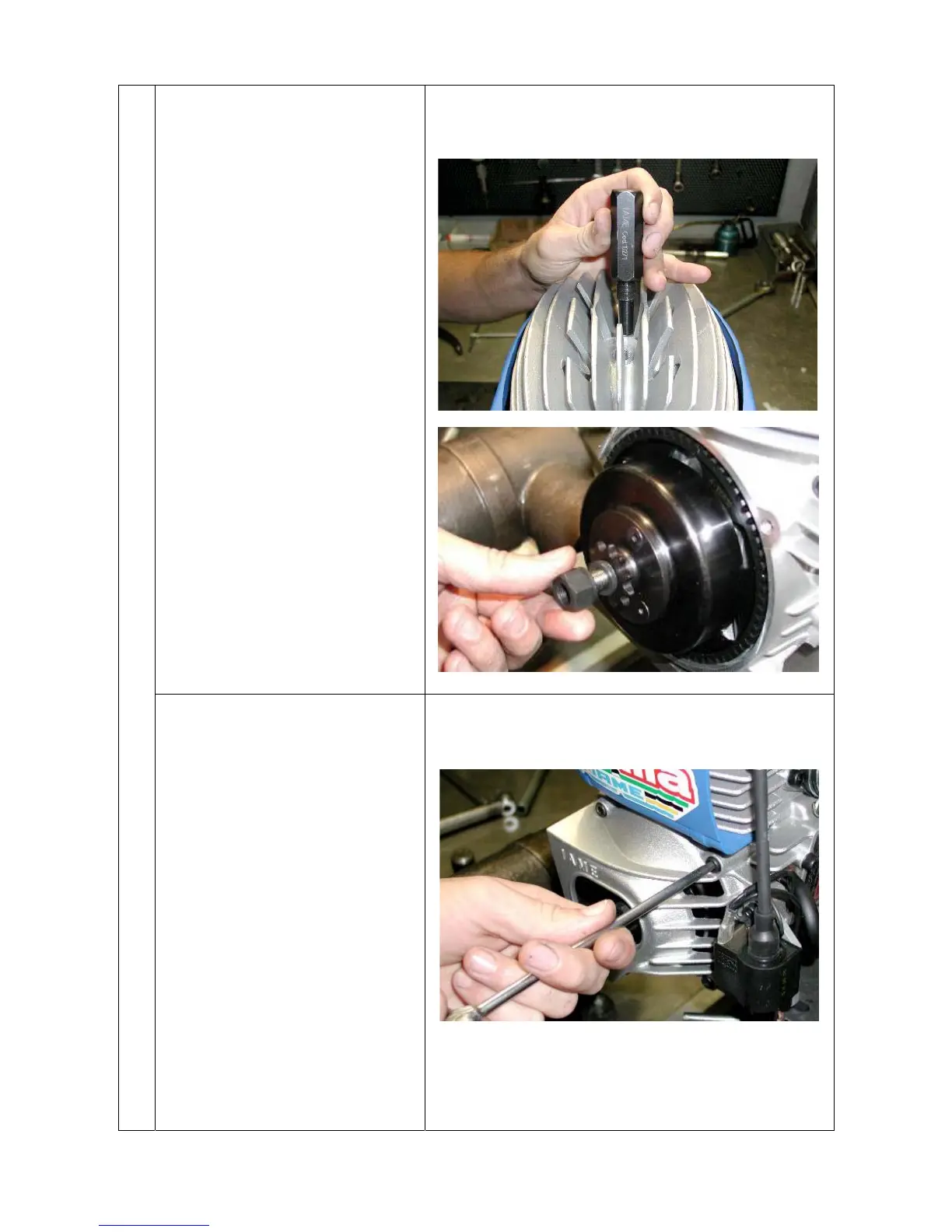

g) INSTALL THE PISTON FITTING
SO THAT THE SHAFT DOES NOT
ROTATE (see Fig.25) AND TORQUE
THE M1O NUT ON THE DRUM.
(M10 NUT) (see Fig.26).
TORQUE AT 30÷40 Nm ( 265÷350 lb-in).
- PISTON FITTING: P.N. 10271
- 12 POINT WRENCH - 17mm
h) REINSTALL CLUTCH COVER
3 SCREWS M6 (see Fig.27).
TORQUE AT 8÷10 Nm (70 ÷ 90).
- 5mm ALLEN T TYPE
Fi
g
.25
Fi
g
.26
Fi
g
.27
