MAN-045 ING
18

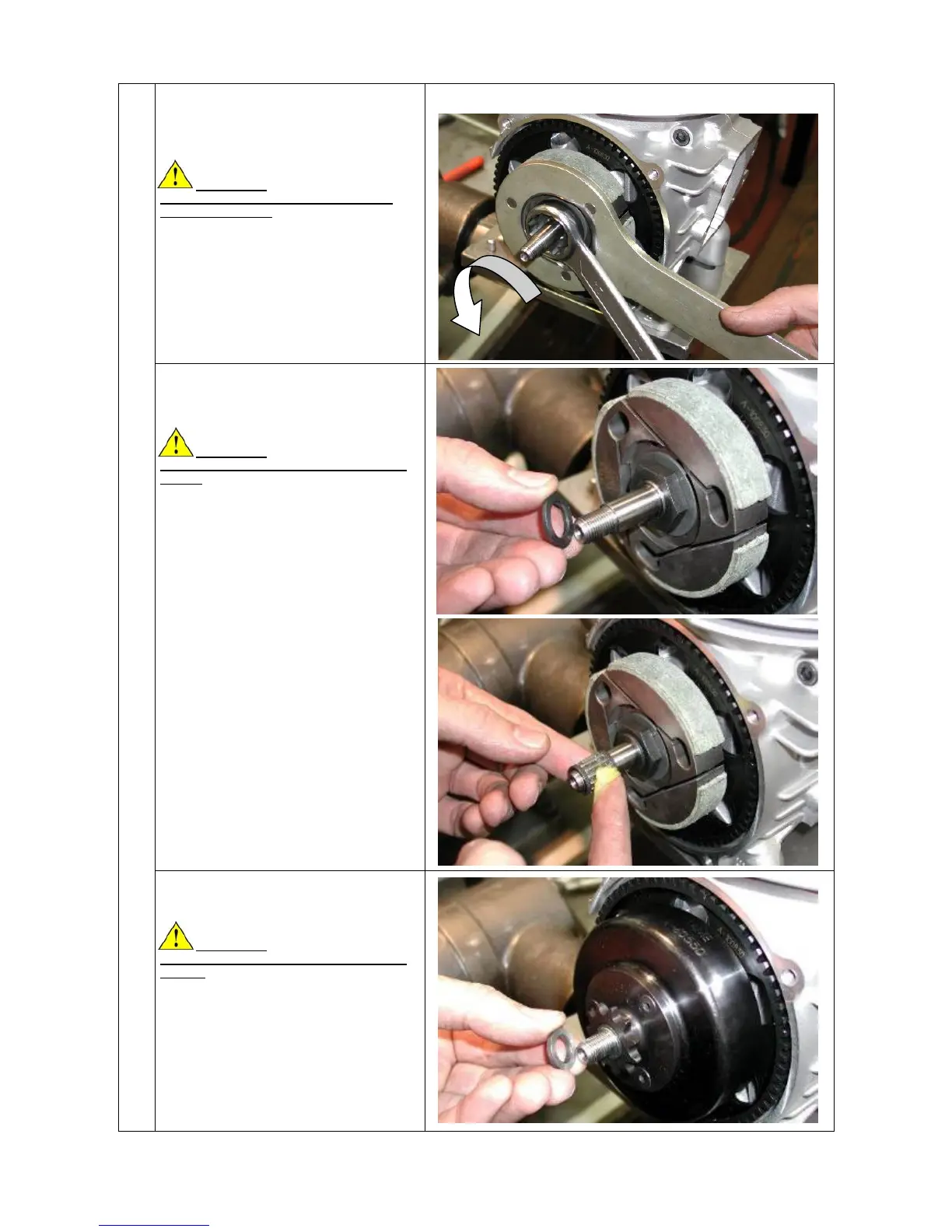

d) INSTALL THE CLUTCH BODY FIXING
NUT USING THE CLUTCH WRENCH
(see Fig.21).
TORQUE AT 40÷50 Nm ( 350÷440 in-lb).
ATTENTION:
TORQUE COUNTERCLOCKWISE AS NUT
HAS LEFT THREAD.
- CLUTCH WRENCH: P.N. 10270
- 24m ALLEN WRENCH
e) INSTALL THE INNER WASHER
(see Fig.22).
ATTENTION:
INSTALL WASHER WITH BEVEL TOWARDS
SHAFT.
CLEAN ROLLER CAGE AND GREASE BEFORE
INSTALLING IT ON CRANKSHAFT
(see Fig.23).
f) INSTALL CLUTCH DRUM AND
EXTERNAL WASHER (see Fig.24).
ATTENTION:
INSTALL WASHER WITH BEVEL TOWARDS
SHAFT .
Fi
