BEFORE ASSEMBLING THE CLUTCH , WASH WITH DILUENT THE SHAFT TAPER, THE CONNECTING HOLE ON
THE CLUTCH BODY, THE CLUTCH DRUM AND STARTER RING .

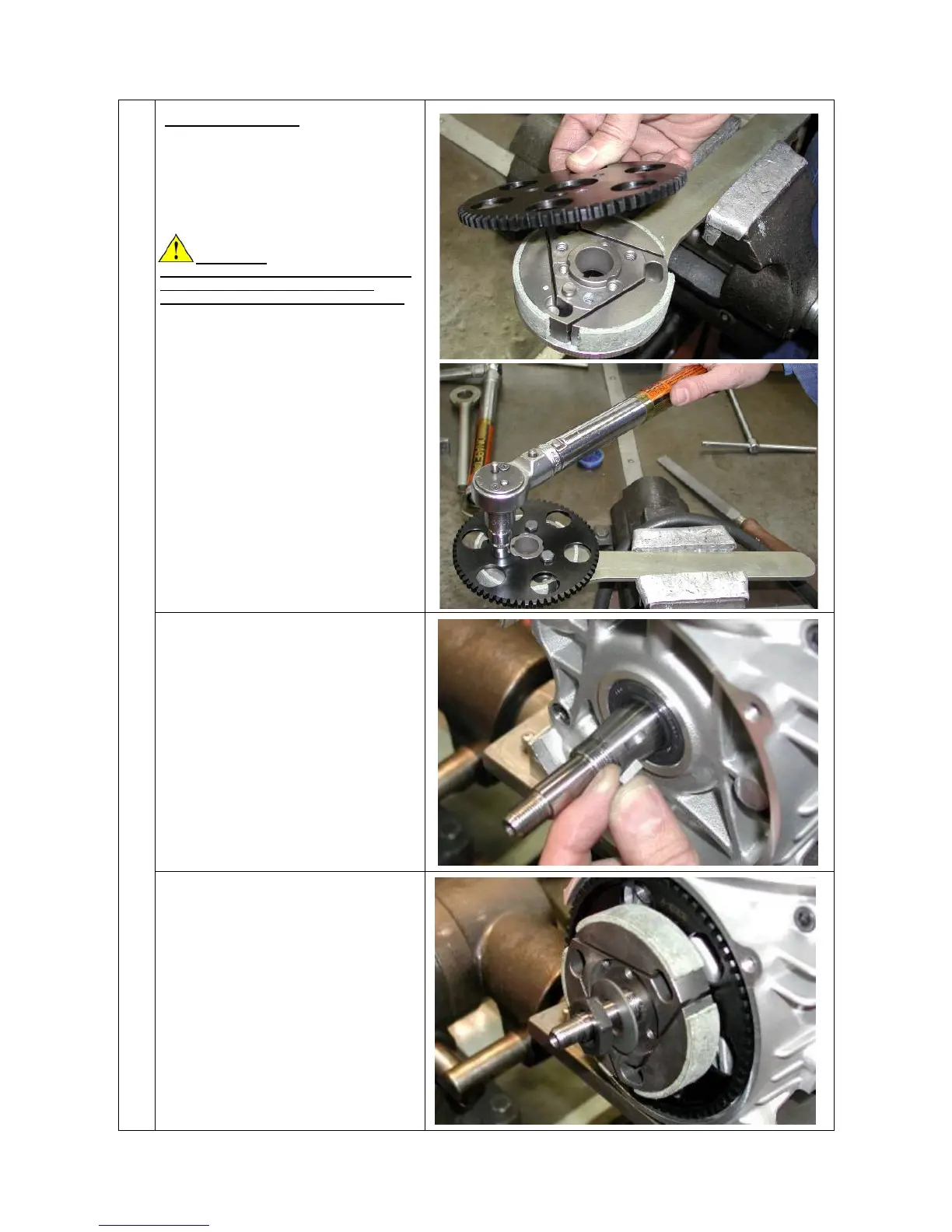

INSTALL THE CLUTCH :
a) INSTALL THE STARTER RING ON THE
CLUTCH BODY BY MATCHING THE 3
HOLES AND THE DRAGGING PIN
(3 SCREWS M6) .
TORQUE AT 10 Nm (90 in-lb) AND APPLY
LOCTITE ON THREADS.
(Loctite) (see Fig.17/18).
ATTENTION:
MAKE SURE TO ALWAYS INSTALL THE Ø 7
DRAGGING PIN, AS OTHERWISE, THE
KICKBACKS COULD BREAK THE SCREWS.
- 10mm SOCKET T TYPE
b) INSERT THE KEY ON SHAFT (see
Fig.19).
8.
c) INSTALL THE CLUTCH BODY AND THE
CONE SAFETY WASHER.
(see Fig.20).
