MAN-045 ING
16

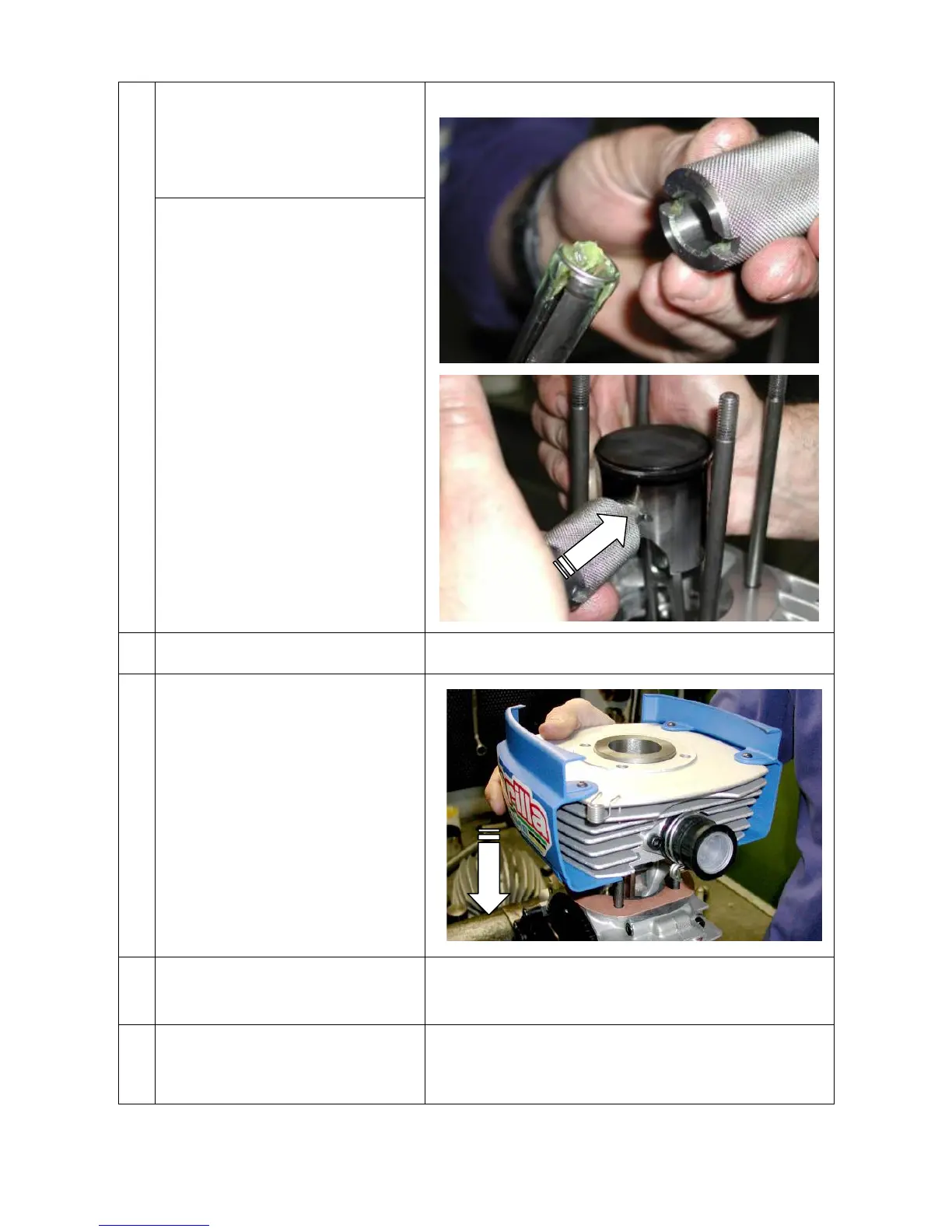

f) PLACE CIRCLIP ON TOOL
GREASE TOOL, TO KEEP CIRCLIP IN
PLACE.
(see Fig.14).
g) INSERT CIRCLIP
(see Fig.15).
CHECK THAT CIRCLIPS ARE IN SEAT.
-SPECIAL TOOL: P.N. 10121
4.
INSTALL A NEW CYLINDER GASKET .
5.
INSTALL CYLINDER (see Fig.16).
VISUAL CHECK.
OIL CYLINDER AND PISTON.
6.
CHECK STATUS OF CYLINDER HEAD, CLEAN
COMBUSTION CHAMBER FROM DEPOSITS.
DO NOT SCRATCH COMBUSTION CHAMBER.
7.
INSTALL HEAD
4 NUTS M8 WITH WASHERS.
CROSS TORQUE.
TORQUE AT 18 Nm (160 in-lb).
-13mm SOCKET T TYPE
