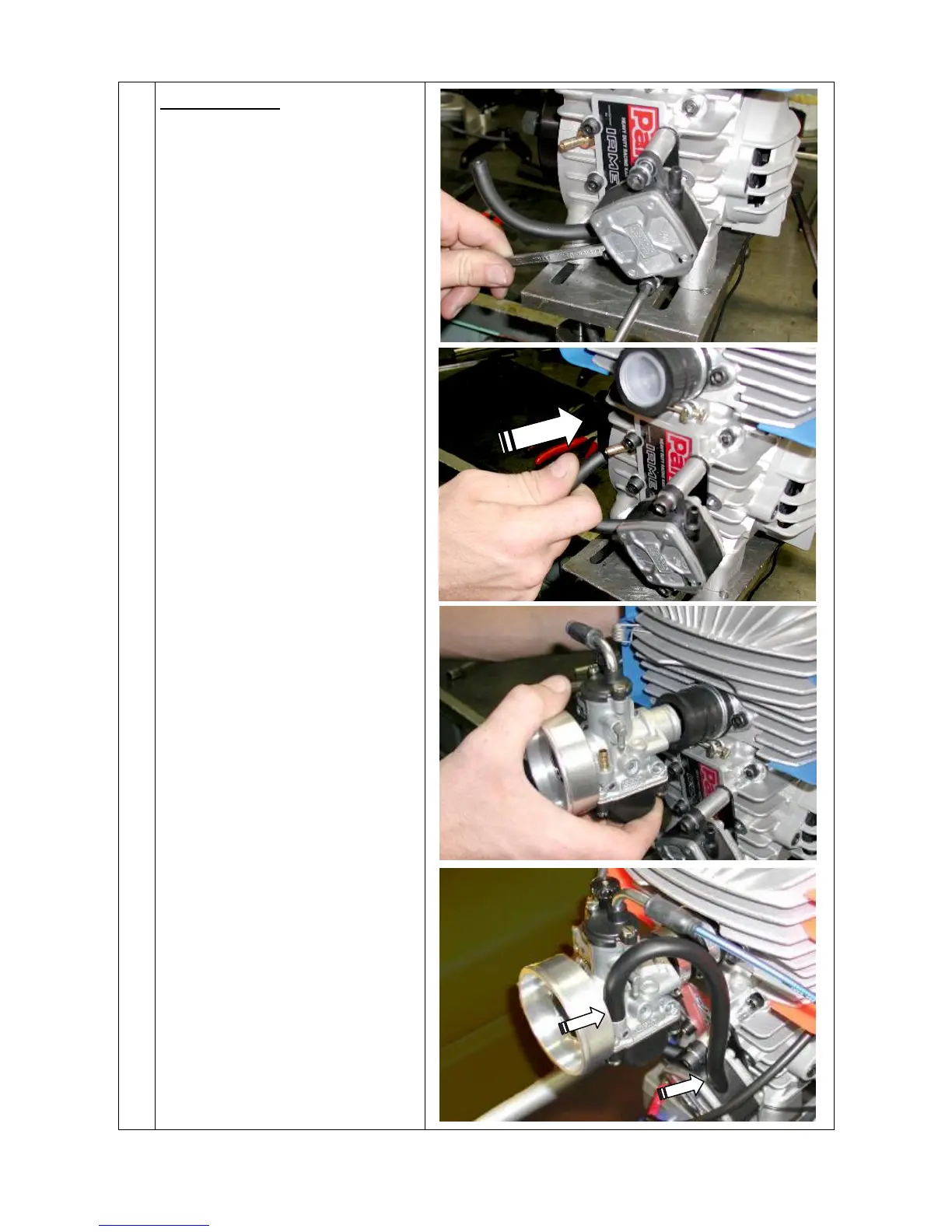

INSTALL FUEL PUMP
(see Fig.36)
2 SCREWS M6X45
1 NUT M6.
(5mm ALLEN T TYPE)
(12 POINT WRENCH - 10mm)
CONNECT PUMP INTAKE PRESSURE TO THE
CRANKCASE FITTING (see Fig. 37).
INSTALL THE CARB. AND SECURE IT TO THE
FITTING, BY MEANS OF THE STEEL CLAMP
(see Fig. 38).
CONNECT THE CARB. FUEL FITTING TO
THE PUMP FITTING DELIVERY (see Fig.39).
Fi
g
.36
Fi
g
.37
Fi
g
.38
Fi
g
.39
