172

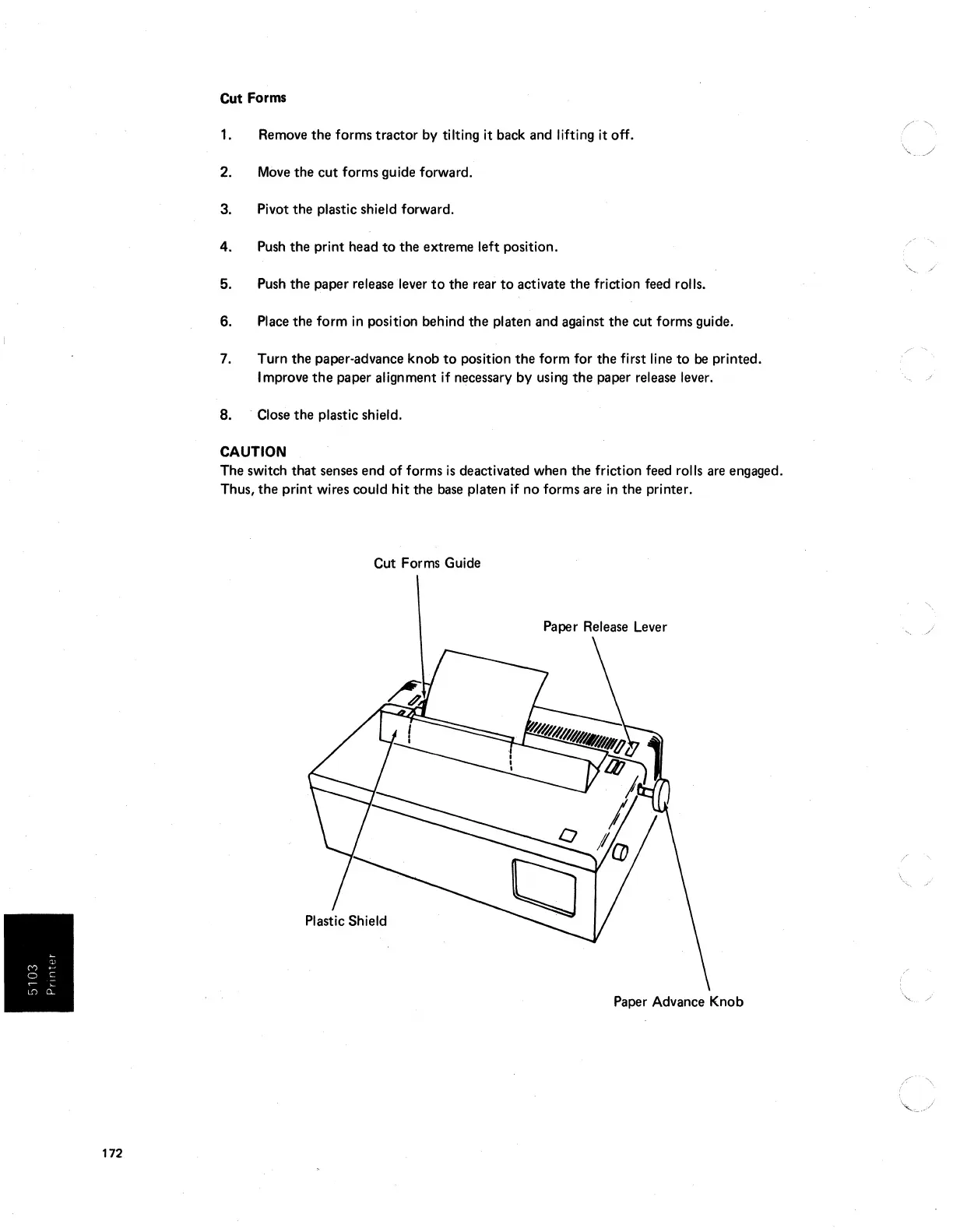

Cut
Forms
1. Remove the forms tractor by tilting it back and lifting it off.
2.
Move
the
cut
forms guide forward.
3. Pivot the plastic shield forward.
4. Push the print head
to
the extreme left position.
5. Push the paper release lever
to
the rear
to
activate
the
friction feed rolls.
6. Place the form
in
position behind the platen and against the cut forms guide.
7. Turn the paper-advance knob
to
position
the
form for the first line
to
be
printed.
Improve
the
paper alignment if necessary by using
the
paper release lever.
8. . Close the plastic shield.
CAUTION
The switch that senses end of forms
is
deactivated when the friction feed rolls are engaged.
Thus, the print wires could
hit
the base platen
if
no forms are
in
the printer.
Cut Forms Guide
Paper Release Lever
Paper Advance Knob
./
