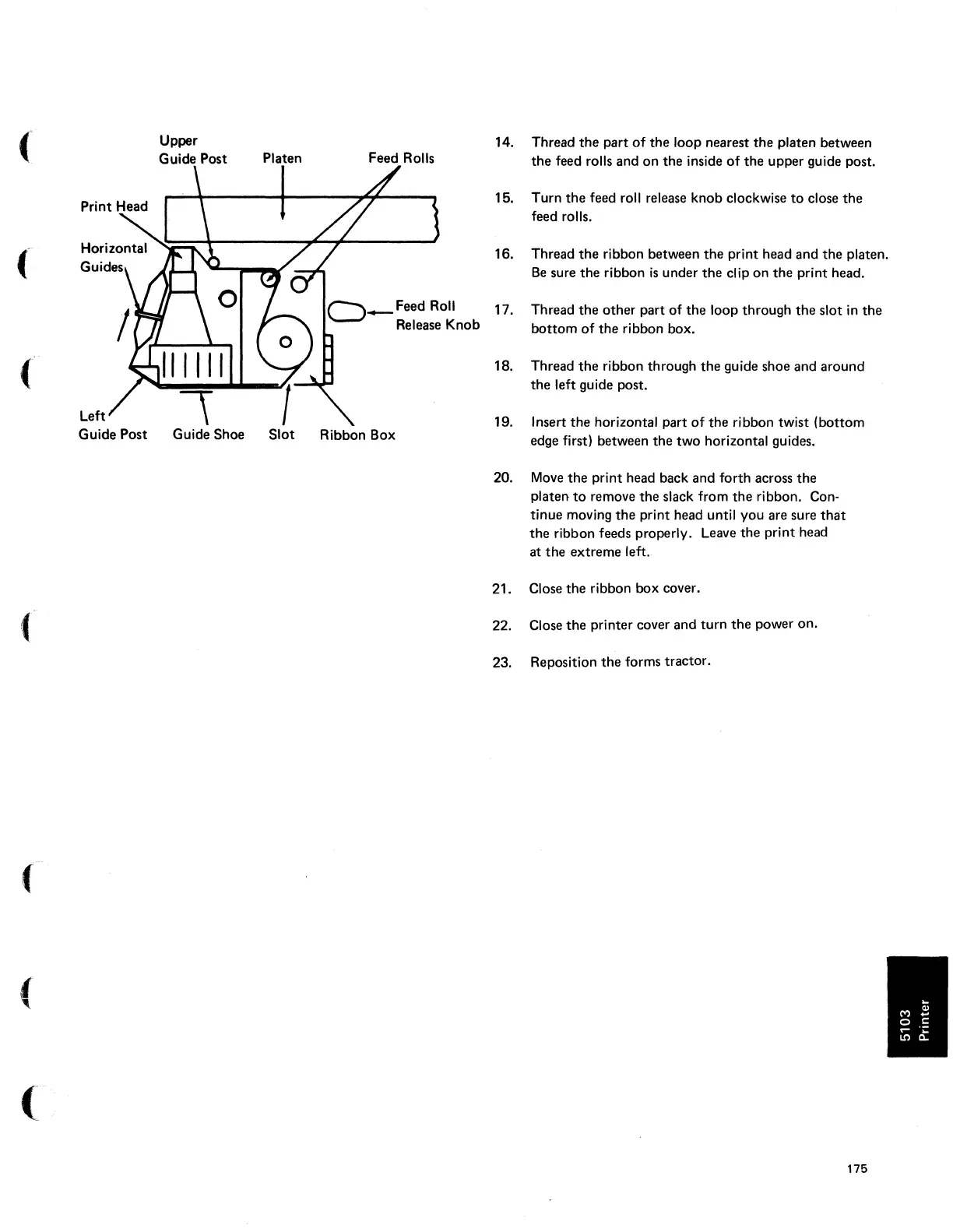

Platen
Left
Guide Post Guide Shoe Slot
,
"
Feed Rolls
14. Thread the part
of
the loop nearest the platen between
the feed rolls and on the inside
of
the upper guide post.
15. Turn the feed roll release knob clockwise
to
close the
feed rolls.
16. Thread
the
ribbon between the print head and the platen.
Be
sure the ribbon
is
under the clip on the print head.
<::>_
Feed Roll 17. Thread the other part of the loop through the slot
in
the
Release Knob bottom of the ribbon box.
Ribbon Box
18. Thread
the
ribbon through the guide shoe and around
the left guide post.
19. Insert the horizontal part of the ribbon twist (bottom
edge first) between the two horizontal guides.
20.
Move
the print head back and forth across the
platen
to
remove the slack from the ribbon. Con·
tinue moving the print head until you are sure
that
the ribbon feeds properly. Leave the print head
at the extreme left.
21. Close the ribbon box cover.
22. Close the printer cover and turn the power on.
23. Reposition the forms tractor.
