Note: When the keyboard is installed correctly, it will sit flat inside of the tray
and not extend above or below the 1U height of the tray.

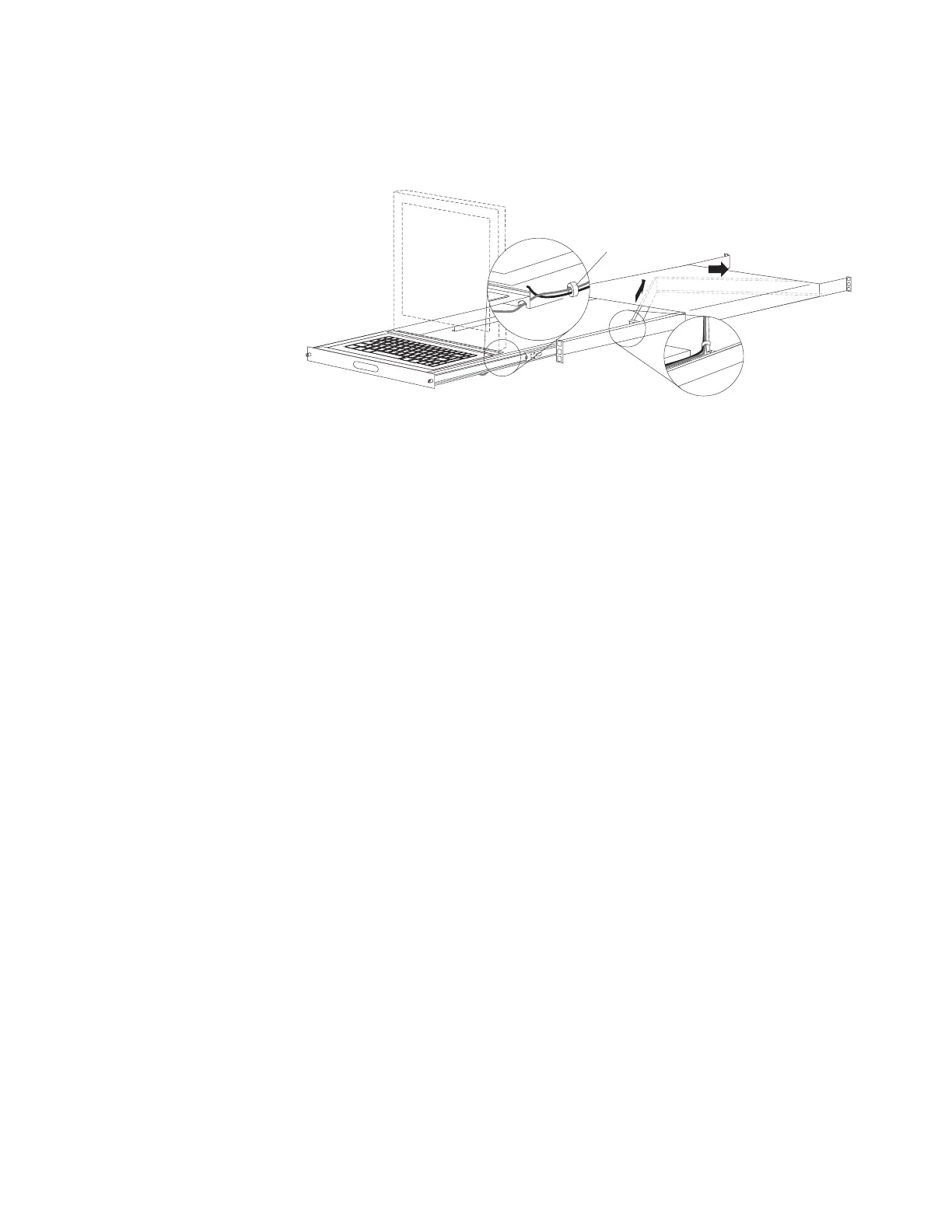

8. Route the keyboard and mouse cable beside the video cable and towards the
cable-management arm. Route both cables through the cable clamp.
Cable clamp
9. Secure the keyboard and mouse cable to the cable-management arm using
the existing cable straps; then, install the cable cover that you removed earlier.
10. Carefully push the flat panel monitor down to the storage position; then, slide
the tray halfway inward.
1U Flat Panel Monitor Console Kit 91
