Reinstall the screw on the cable clamp and repeat this step for the other device,
if you installed two devices.
2. Route the line cords left or right, toward the side of the rack cabinet; then, route
the line cords along the side brace towards the back of the rack cabinet and
secure them with the cable straps that come with this option.
3. Route the line cords toward a dedicated power source, such as a UPS or
electrical outlet. Use the provided cable straps to secure the line cords along
the way. Use the openings in your rack cabinet, if you must exit the rack cabinet
to connect to your power source.
4. After you connect the line cords to properly wired and grounded dedicated
power sources, you can turn on the circuit breaker; then, connect other devices
in your rack cabinet to the seven power outlets on the Rack PDU. Route all
other power cables neatly, and use cable straps to secure the cables that you
plug into the outlets on the Rack PDU.
M
A
IN
4
5
6
6
7

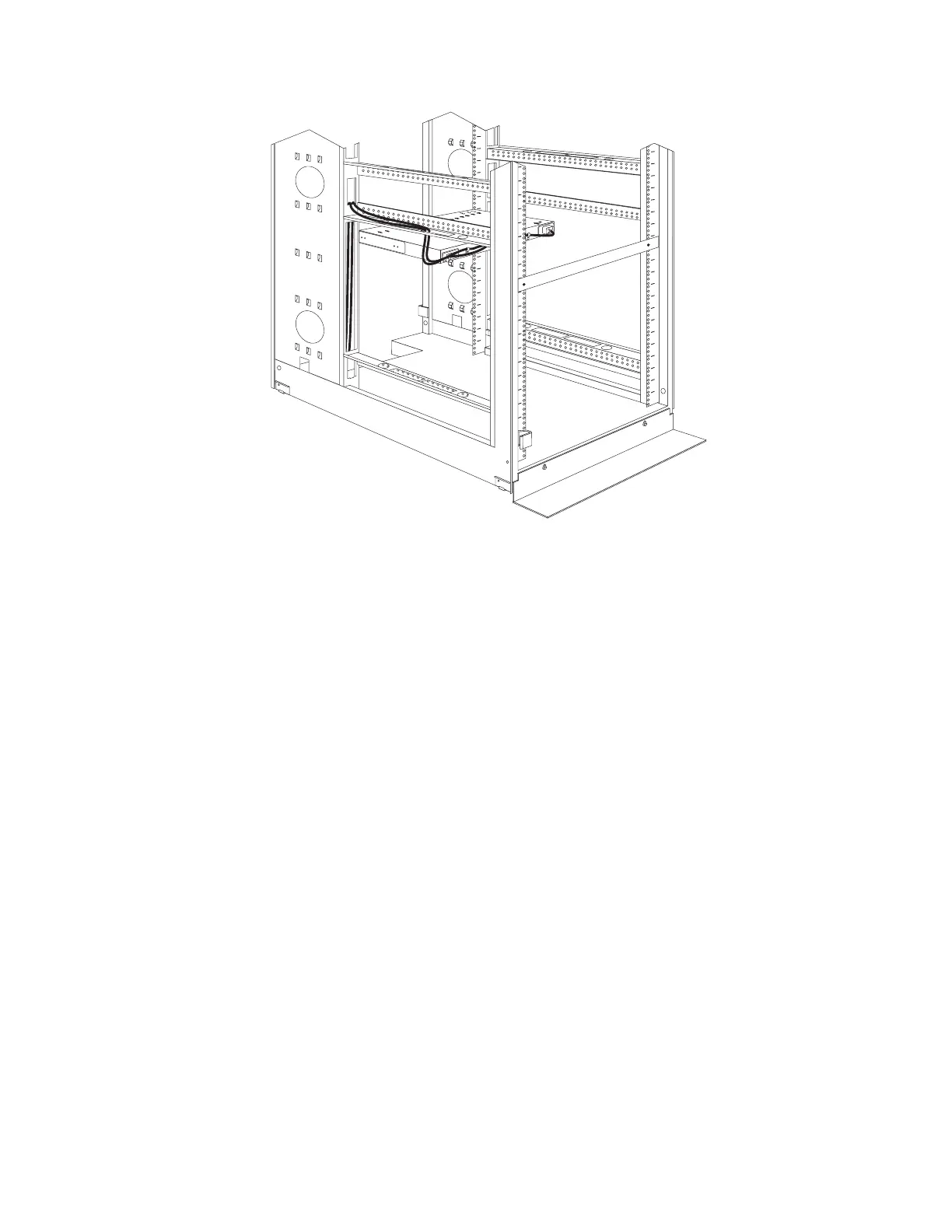

Figure 52. Connecting and routing the line cord
Installing Optional Devices 141
