You have now finished attaching the flat panel monitor to its stand. The rest of
the installation process involves preparing the keyboard tray for storage and
routing cables.
Notes:
a. You must remove any keyboard or mouse that is already in the keyboard
tray before continuing.
b. You will not be able to store a mouse in the keyboard tray after installing
the Flat Panel Monitor Rack Mount Kit.
c. You can only store a space-saver keyboard in the keyboard tray.
4. Install the mounting studs 2 and bumpers 3 that come in the monitor
mounting hardware package.

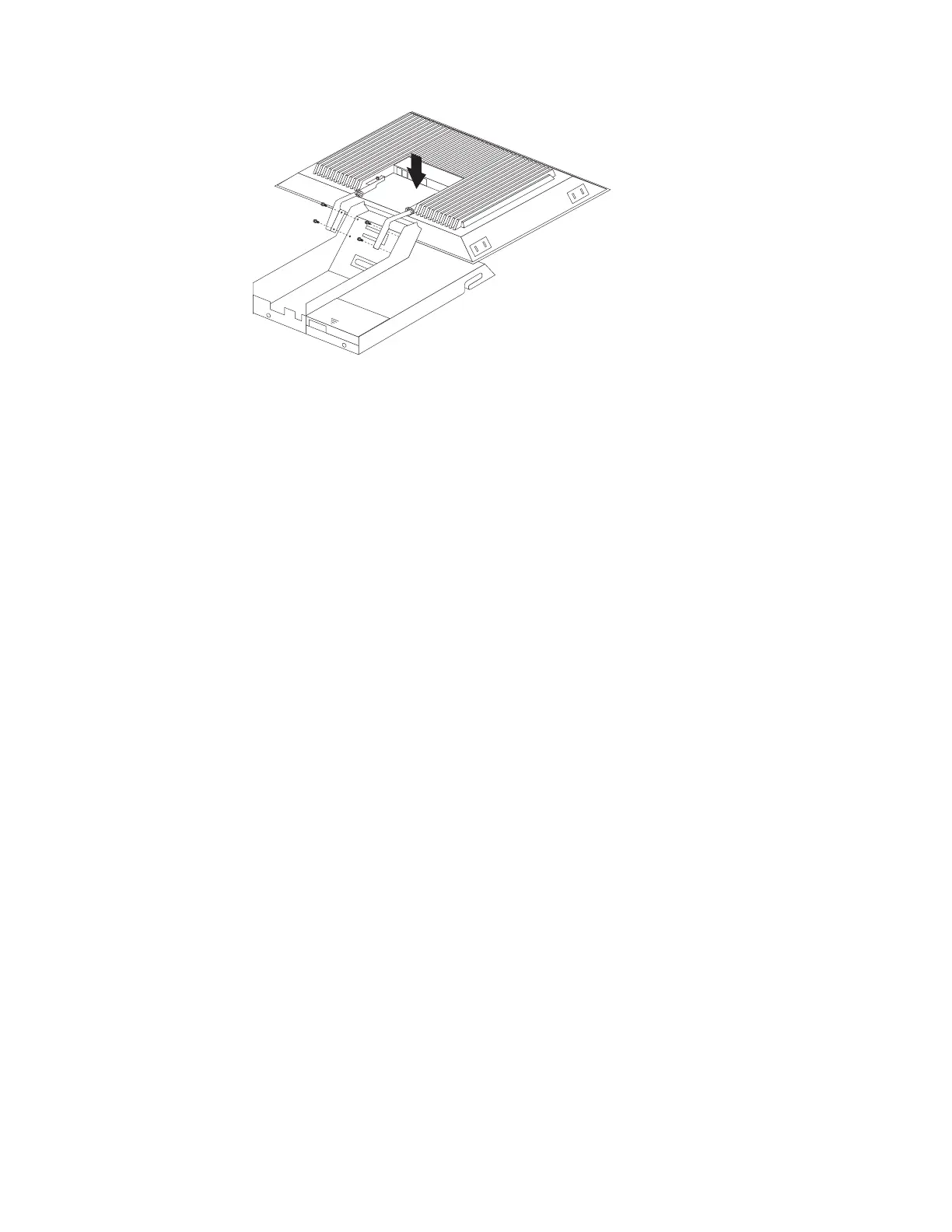

Figure 83. Installing the monitor on the new monitor stand
178 Hardware Maintenance Manual: IBM PC Server/Enterprise Racks Types 9306, 9308
