Note: Clean the installation area on the keyboard tray with a suitable cleaning
agent, such as alcohol, before installing the rubber bumpers on the front
of the keyboard tray.
5. Open the flat panel monitor1 to its full upright position and align the grooves
in the stand with the mounting studs 2 in the keyboard tray. When the
monitor stand is sitting inside the keyboard tray, slide it towards the back until
it stops.
Note: Install or remove the flat panel monitor only when the display is in its
upright position.
6. Secure the monitor stand in the back of the keyboard tray with the two
provided screws 4.
7. Place the flat panel monitor power supply, which came with your flat panel
monitor, inside the monitor stand. If necessary, insert the power supply spacer
3 behind the power supply and over the cable to keep the power supply in
place.

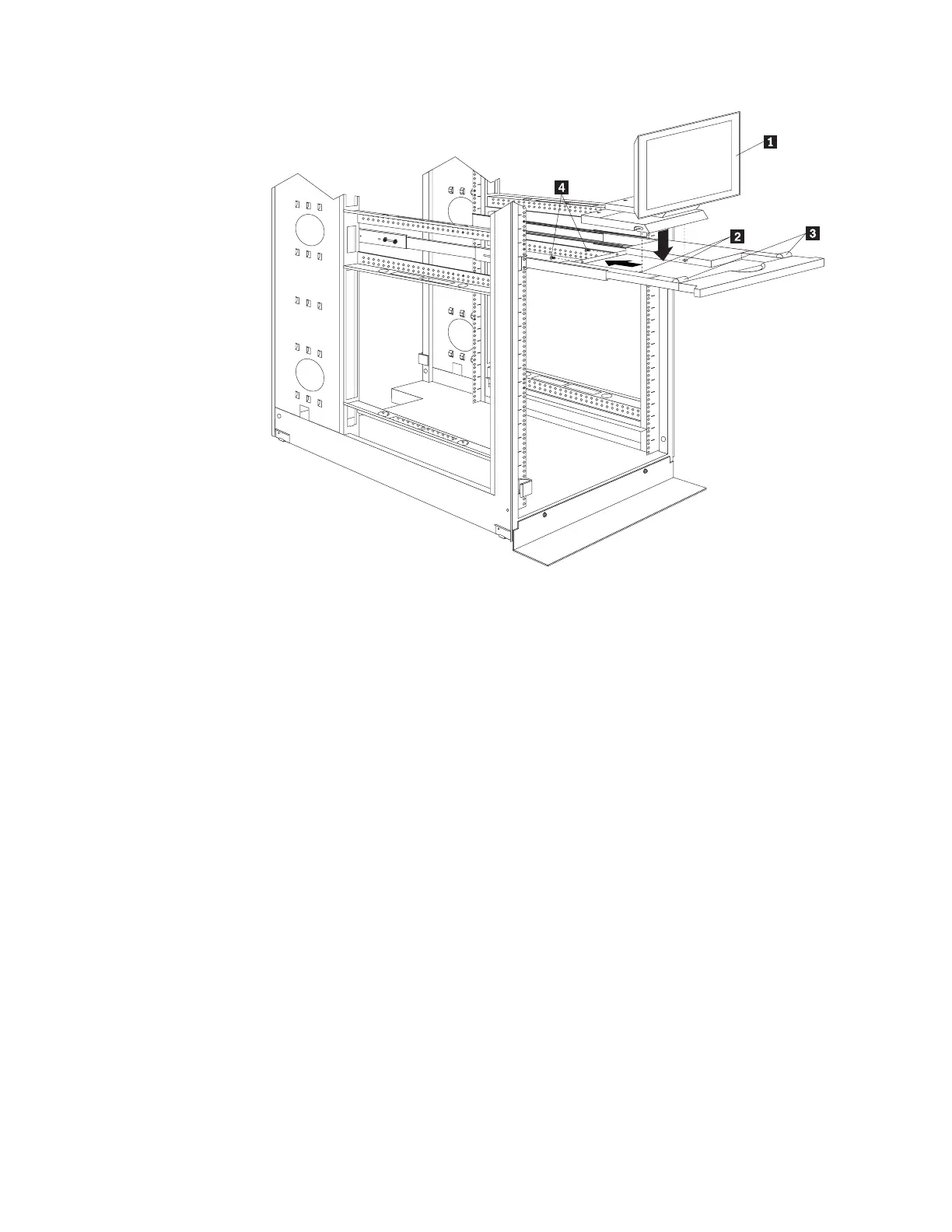

Figure 84. Installing the flat panel monitor in the keyboard tray
Installing Optional Devices 179
