Rear door – Models 42S, 42E
Use the following procedure to remove a rear door from the rack cabinet:
1. Unlock and open the rear door.
2. Grasp the door firmly with both hands and lift it upward and away from the
hinges; then, set the door aside.
Reverse this procedure to install the rear door on the rack cabinet.
Attention: The bottom hinge pin on the rear door is longer than the top hinge
pin. Ensure that you engage the bottom hinge pin first when you install a rear door
on your rack cabinet.
Front door – Models 42S, 42E
Use the following procedure to remove a front door from the rack cabinet:
Bottom
hinge pin
Rear door

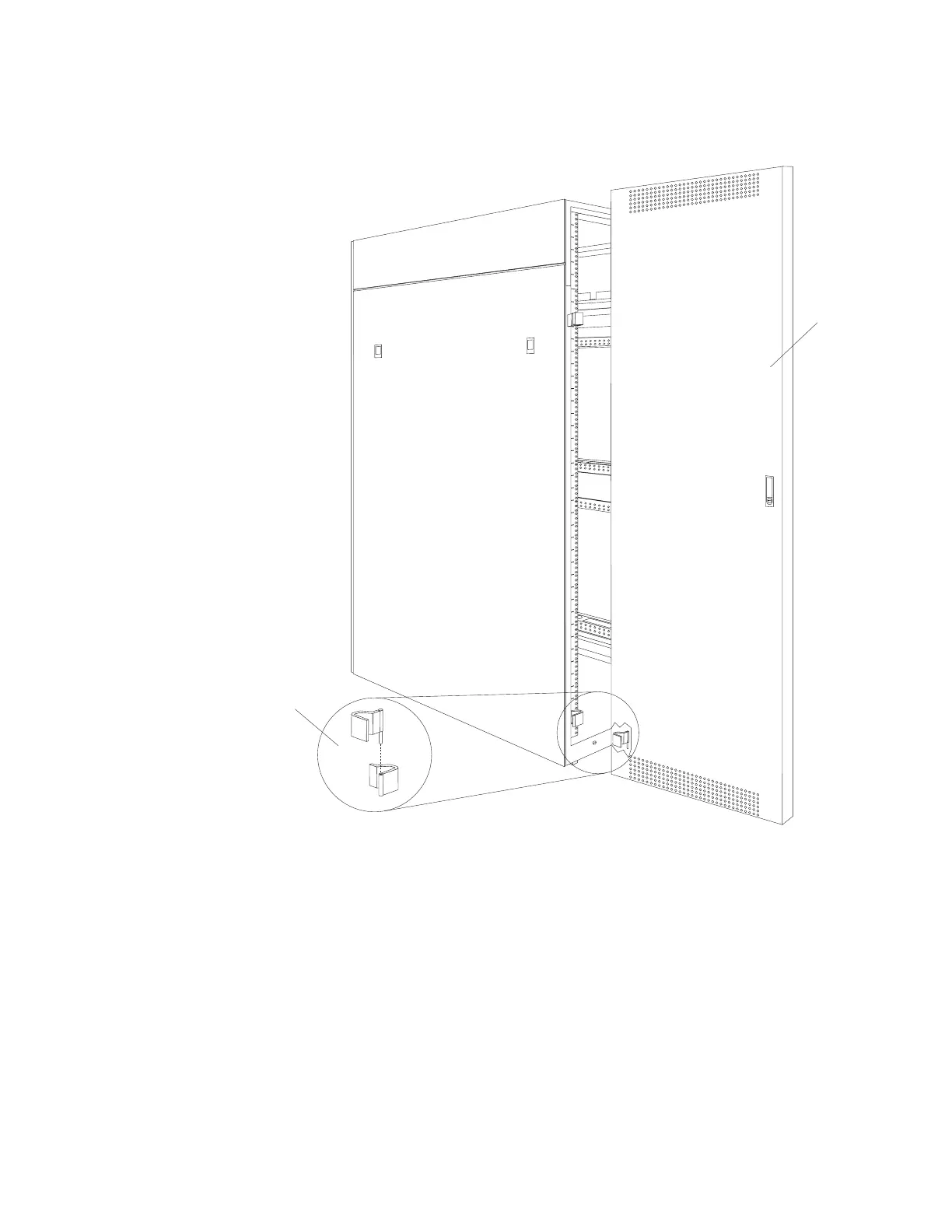

Figure 21. Removing a rear door from the rack cabinet
NetBAY 42 Enterprise Rack (Type 9308 Models 42P, 42X, 4SA, 4SB, 42S, 42E) 63
