4-30
•

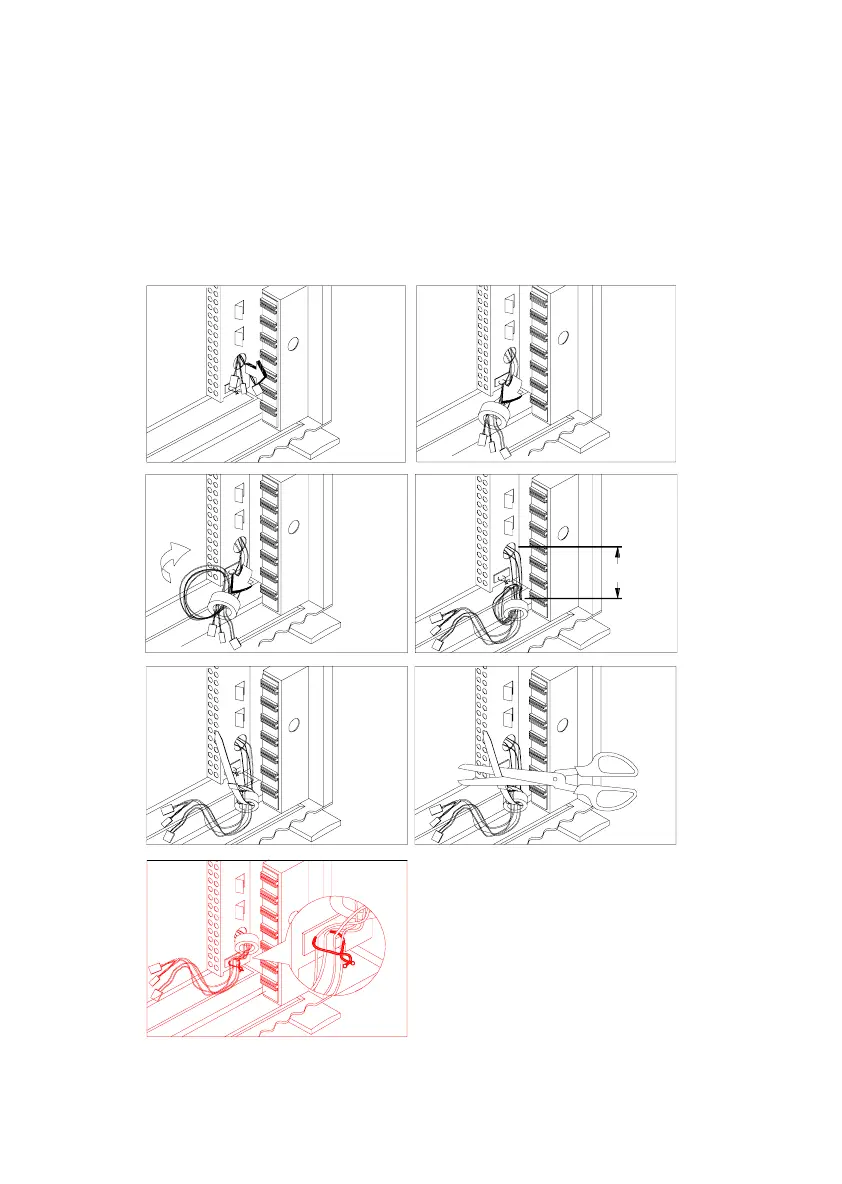

Fasten the cables around the core such that the core is within 20mm from
the circular hole (diagram 4).
•
Fix the cables and core in place with a cable tie (diagram 5).
•
Cut off surplus cable tie (diagram 6).
•
•
Fix cables into cable clip (diagram 7)
.
12
34
56
7
20mm
Figure 4- 25
LED Cables and Power Switch Cable Install Diagram
