Parts/Test Point Locations 5-7
Power Supply Cable Connector Specifications
Refer to the following figures when checking for voltages on power supply cable
connectors.
When checking voltages, the power supply fan must be running. To power-on
the power supply without using the on/off switch, use a screwdriver or other tool
to short the connector CN21 (with the switch cable plug disconnected from the
connector on the system board).

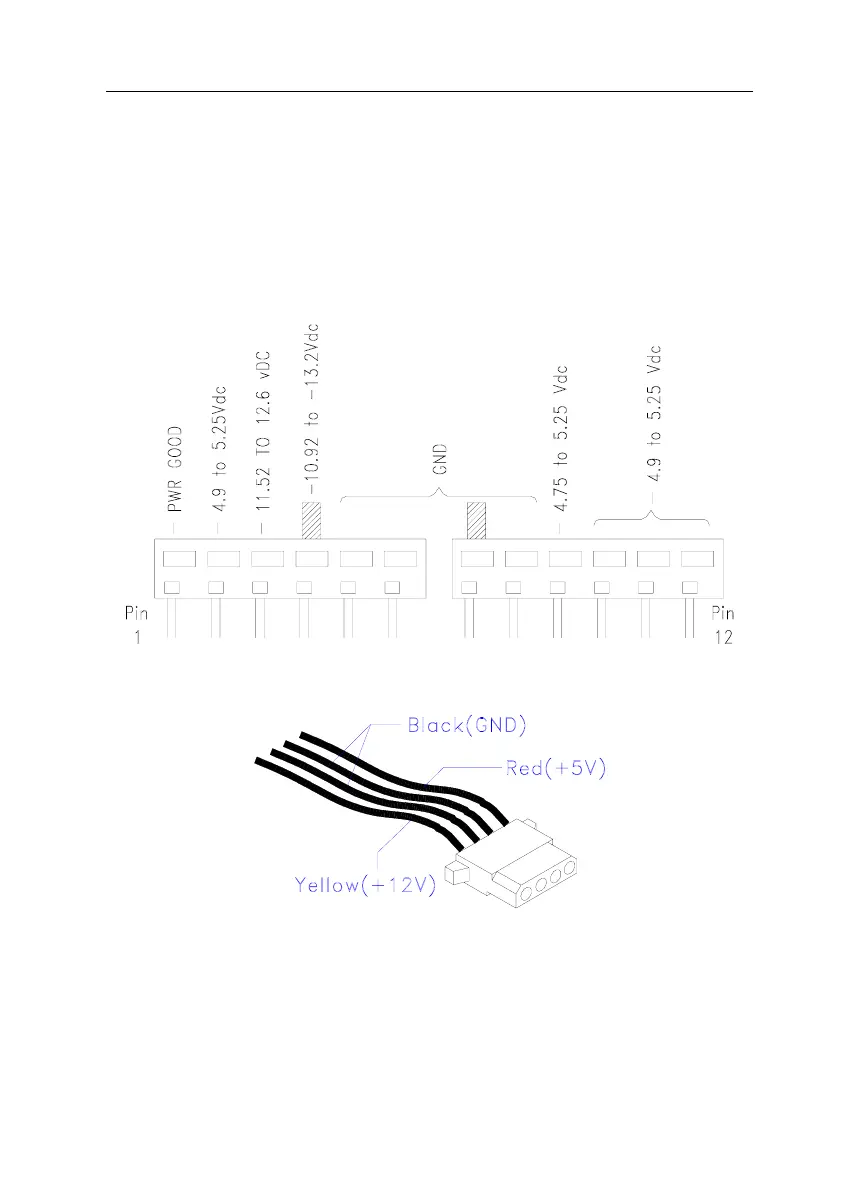

Figure 5- 2 System Board Power Supply Connectors
Figure 5- 3 Hard Drive or CD-ROM Power Cable Connector
