4-28
RTC Lithium Battery
Attention: Be careful when removing the battery. If the retaining clip is
broken, the system board must be replaced.
• Press the securing clip on the battery socket to release the battery.
• Flip out the battery from the socket.

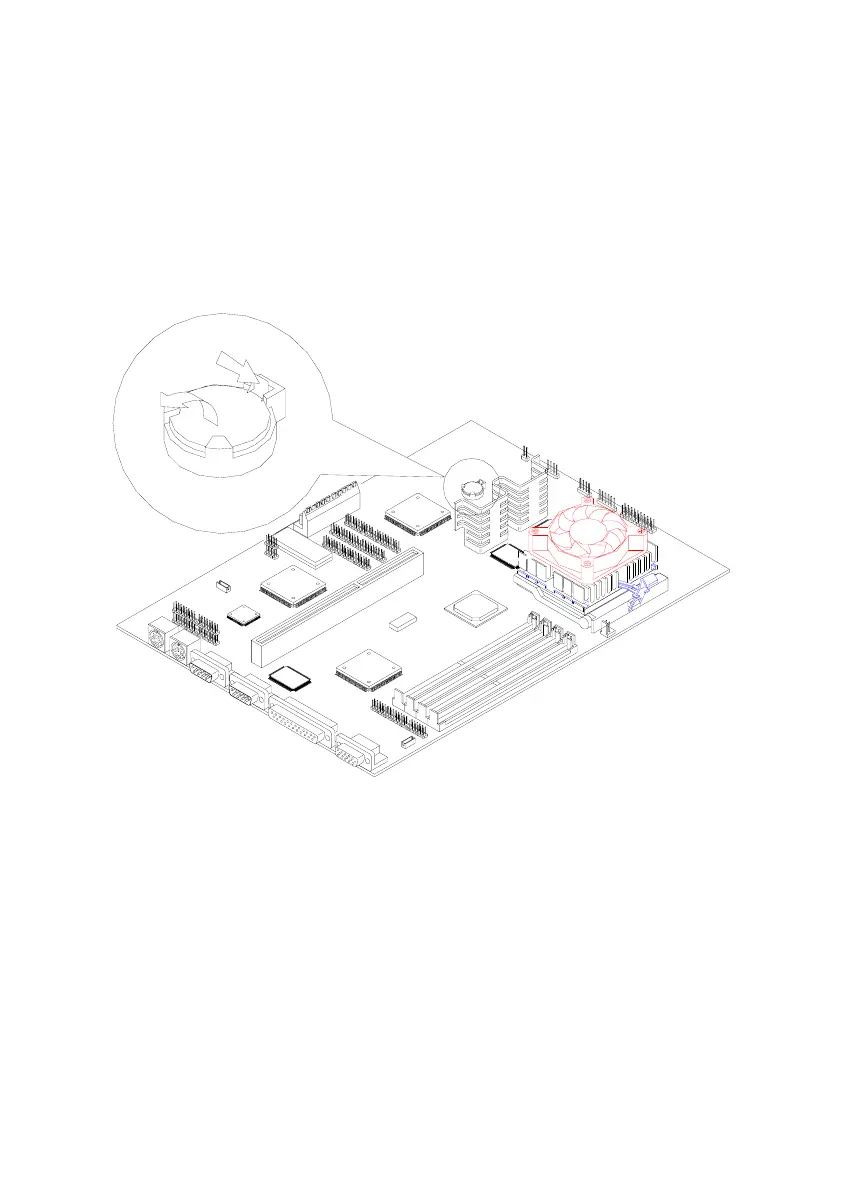

Figure 4- 23 Remove the RTC Lithium Battery
• Insert a new 3-volt(CR2032) lithium battery in the socket and press it down
until the securing clip clicks and locks the battery in.
• If you replace the system battery, you need to reset the system date and
time. You can perform this task from the Window 95 desktop or from the
Setup Utility. To reset the system date and time in the Setup Utility, select
the Date and Time option from the Main Menu. See “Setting the date and
time” on page 1-25 for information about this option.
