IBM Aptiva Series Hardware Maintenance

4-26
Processor Removal
Notes: Determine which type of processor you are installing and make
sure the jumpers are set correctly. And run the Setup Utility
after installing a processor.
Attention: Processors are sensitive to static discharge.
• Remove adapter cards if applicable.
• Detach the heat sink cable from the fan connector FN1.
•
Remove the heat sink by pressing the release tab(rectangular end) and
lifting it up from the CPU.
• Unlatch the handle on the side of the processor socket and lift it all the way
up.
• Lift the processor out of the bracket.
•

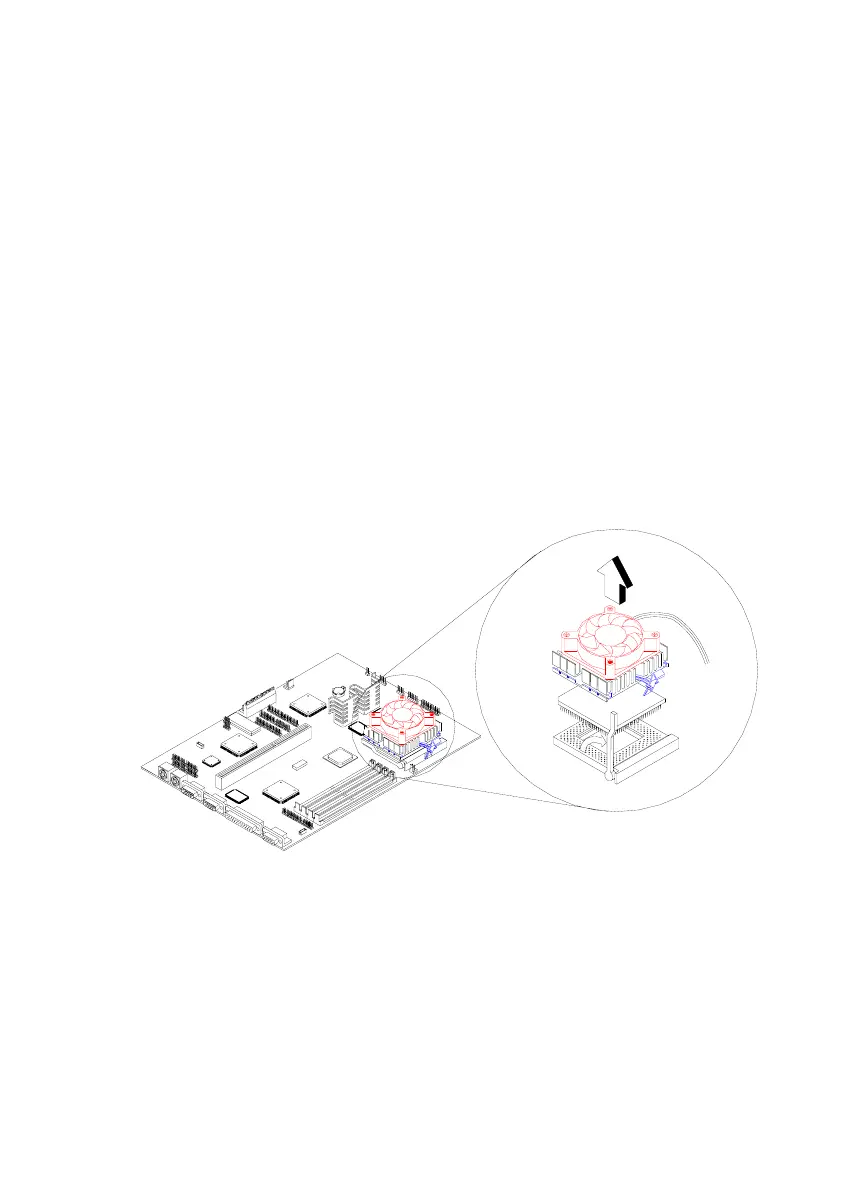

Figure 4- 21 Processor Removal

IBM Aptiva Series Specifications

General

Expansion Slots	ISA, PCI
CPU	Intel Pentium
Operating System	Windows 95
Sound	Integrated Audio
Optical Drive	CD-ROM
Ports	Serial, Parallel, USB
