Check Procedures 2-33

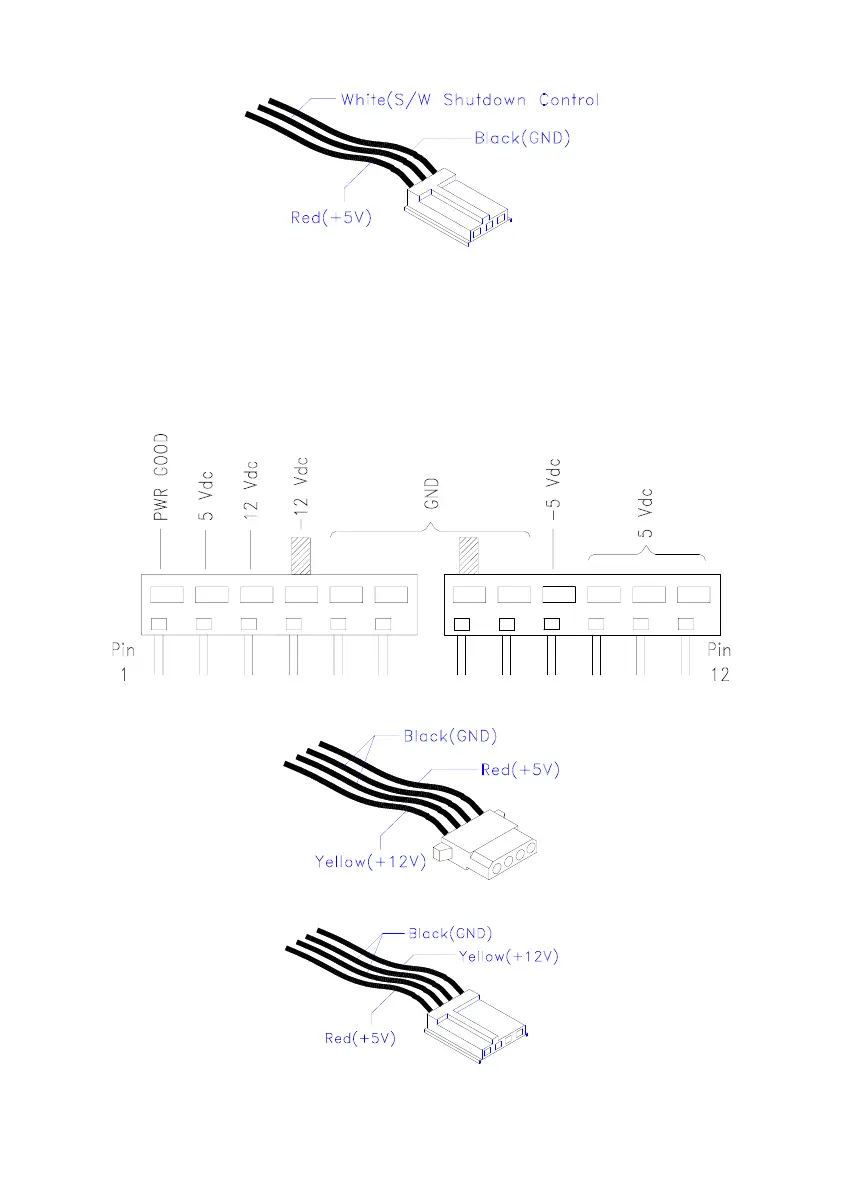

Figure 2- 1 Auxiliary power control cable
005 - DOES THE POWER SUPPLY FAN RUN? (YES, READ
AHEAD. NO, GO TO STEP 009)
− With the system powered on and the power supply fan running,
check the voltages at the power supply connectors for the system
board and all drive connectors, as shown in the following figures.
Figure 2- 2 . System Board Power Supply Connectors (Bottom View)
Figure 2- 3 Hard Drive or CD-ROM End of Power Cable
Figure 2- 4 3.5-In. Diskette Drive End of Power Cable
To Next Page
