One DS4800 and sixteen EXP710 storage expansion enclosures
If you are cabling one DS4800 Storage Subsystem to sixteen EXP710 storage
expansion enclosures, Figure 54 shows the recommended cabling scheme.
One DS4800 to seven EXP810 and eight EXP710 storage
expansion enclosures
If you are cabling one DS4800 Storage Subsystem to seven EXP810 storage
expansion enclosures operating at 4 Gbps and eight EXP710 storage expansion

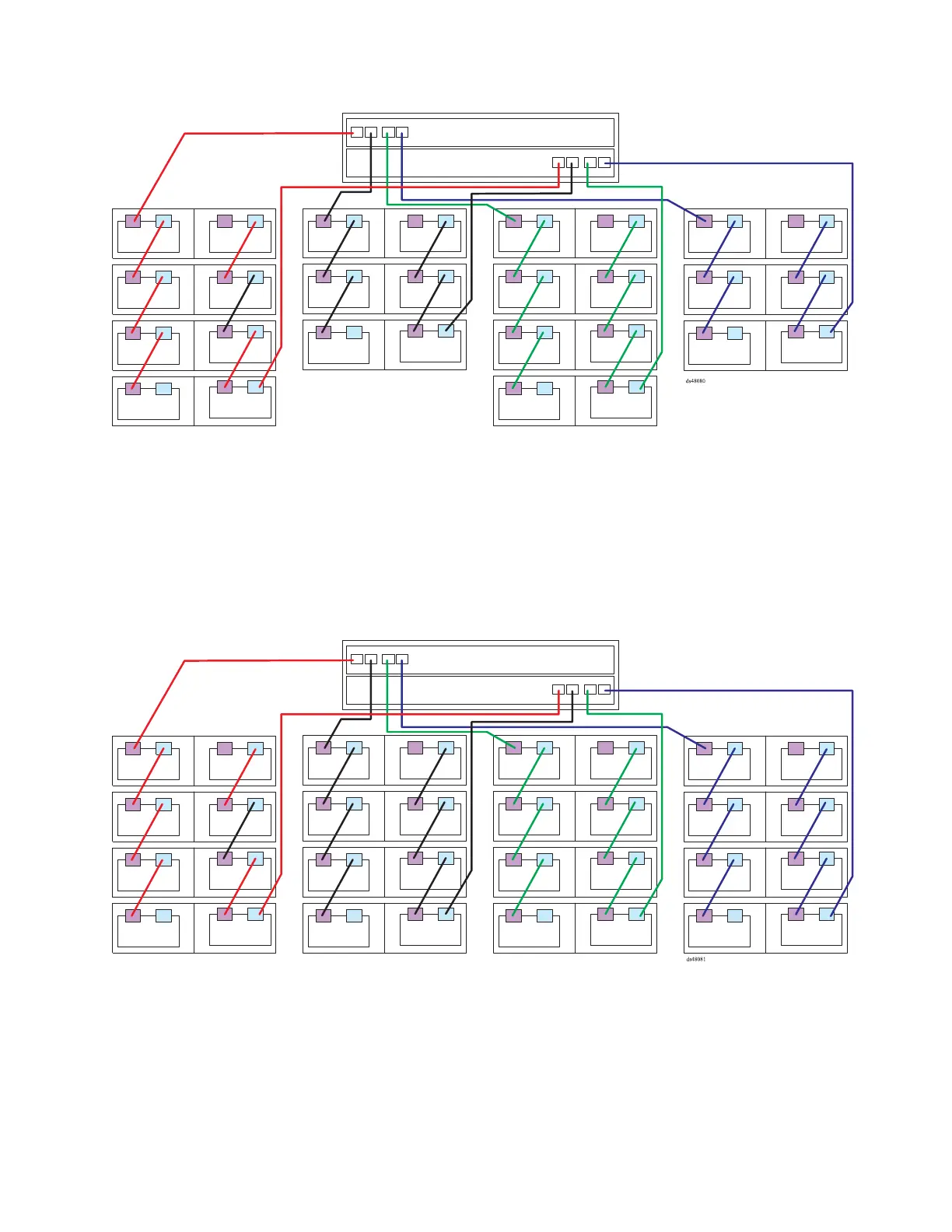

Figure 53. One DS4800 and fourteen EXP810 storage expansion enclosures — Recommended cabling
Figure 54. One DS4800 and sixteen EXP710 storage expansion enclosures — Recommended cabling
Chapter 3. Cabling the storage subsystem 75
