Install an SFP module in the SFP port on the back of the storage expansion
enclosures; then, connect the other end of the LC-LC cable into the SFP module,
as shown in Figure 57.
For important information about connection rules and recommendations, see 4 on
page 67.
Storage expansion enclosure settings
This section provides information about storage expansion enclosure settings. For
additional detail, refer to the Installation, User’s, and Maintenance Guide for your
storage expansion enclosure.
ds48031

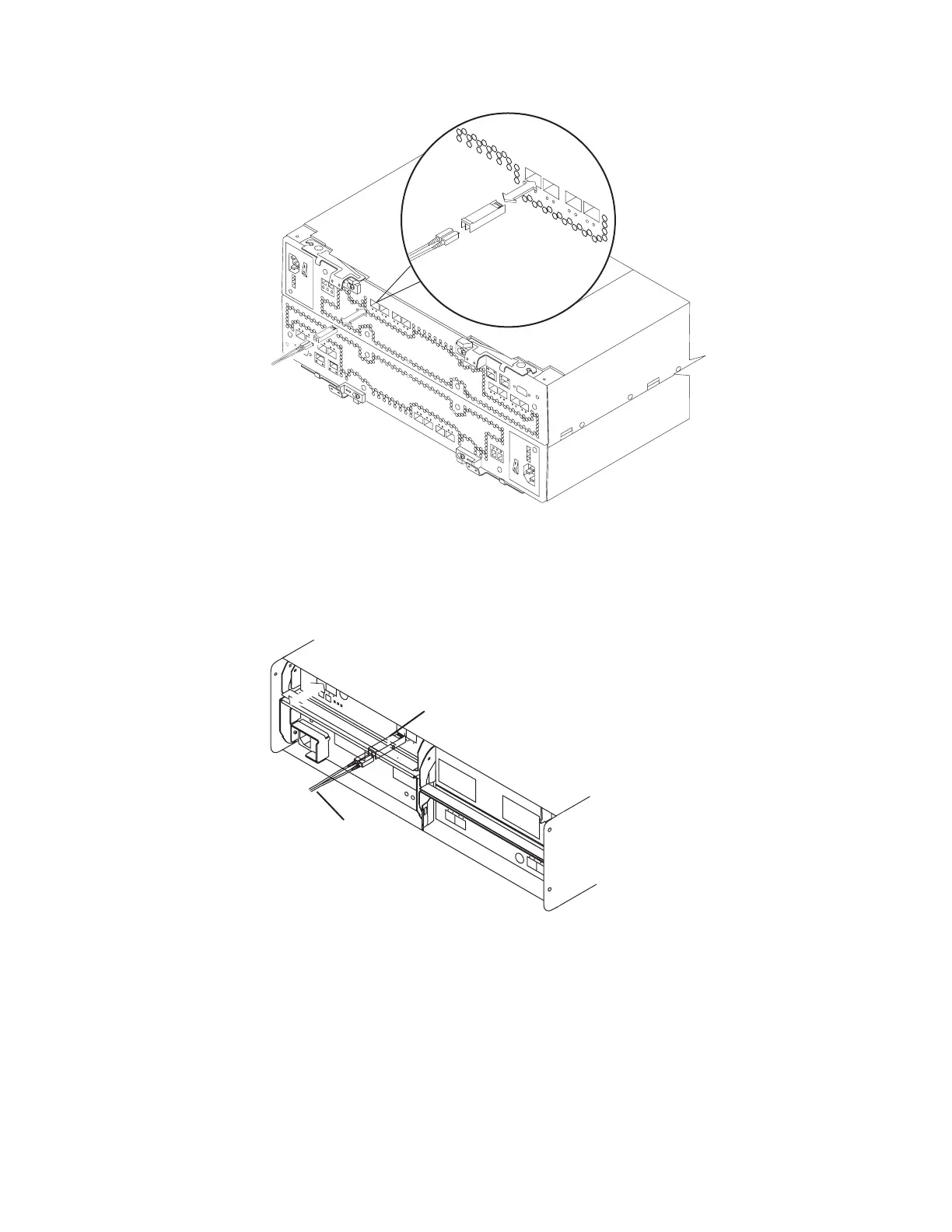

Figure 56. Installing an SFP module and LC-LC cable in a DS4800
Fiber-optic
cable
SFP
module
exp81012
Figure 57. Installing an SFP module and connecting an LC-LC cable to the storage
expansion enclosures
Chapter 3. Cabling the storage subsystem 77
