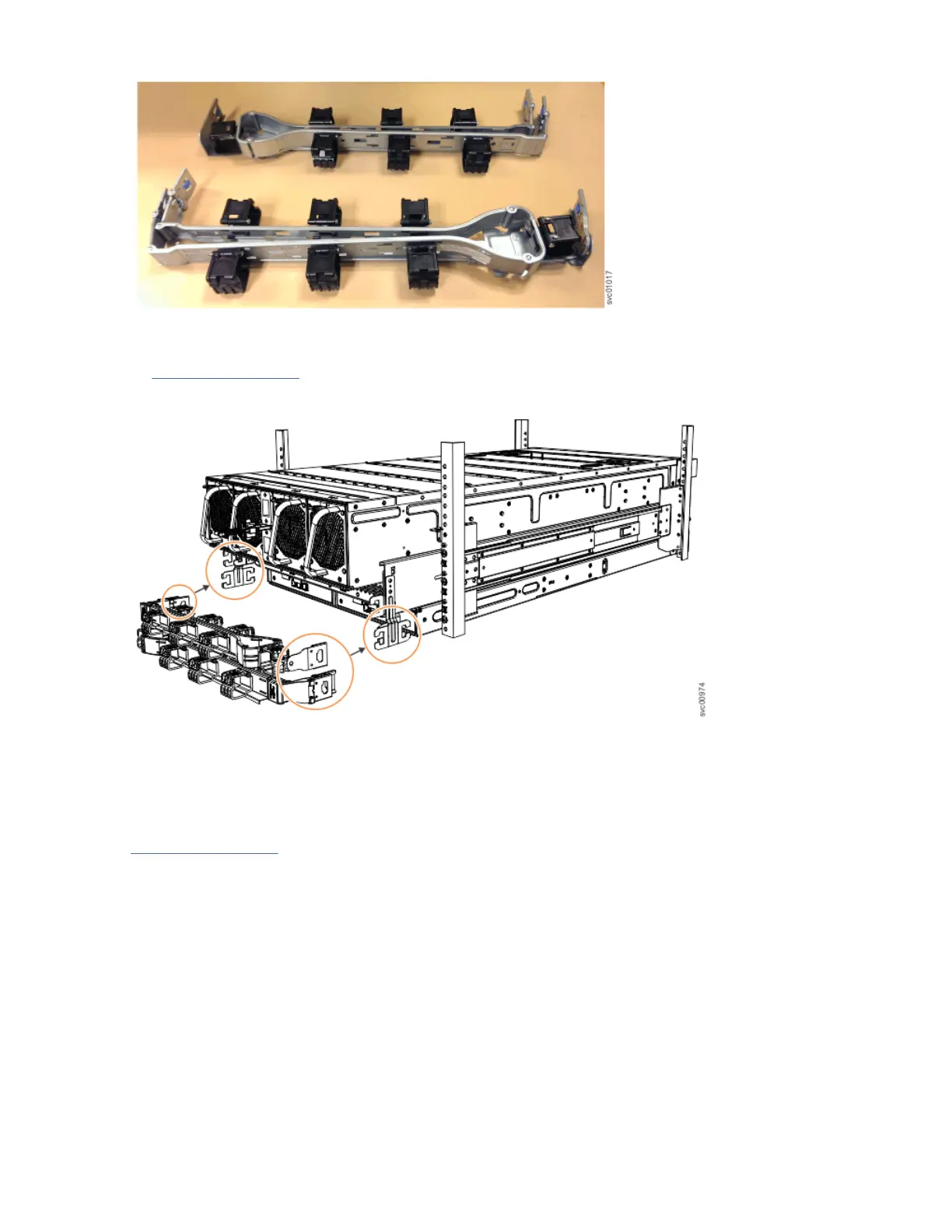

Figure 40. Upper and lower cable management arms
As Figure 41 on page 57 shows, the support rail connectors of each CMA assembly are installed on the
rail hooks at the end of the support rails.
Figure 41. Upper and lower cable management arms
1. Remove the loop straps from the upper and lower CMA assemblies. The straps are used only for
shipping.
Installing the upper CMA assembly
Figure 42 on page 58 shows the connectors on the upper CMA assembly.
