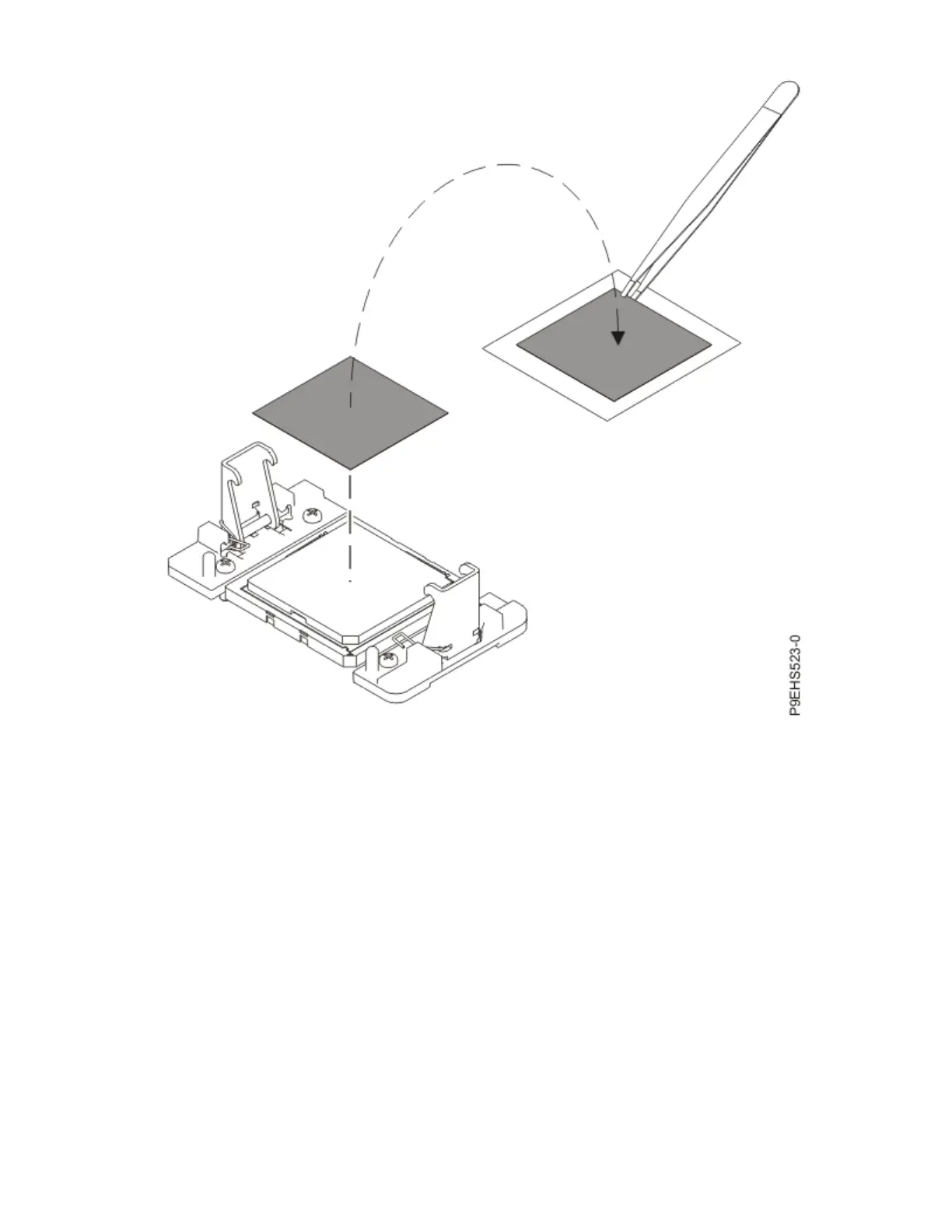

Figure 75. Removing the TIM from the system processor module
8. Remove dust and debris from the system processor module area.
If dust or debris is present, use the supplied air pump to clean the system processor module area.
Blow small bursts of air from the center toward the sides of the system processor module as shown
in the following gure. If your air pump is not assembled as shown in the following gure, fasten the
tip onto the bulb.
Removing and replacing parts in the 9183-22X
87
