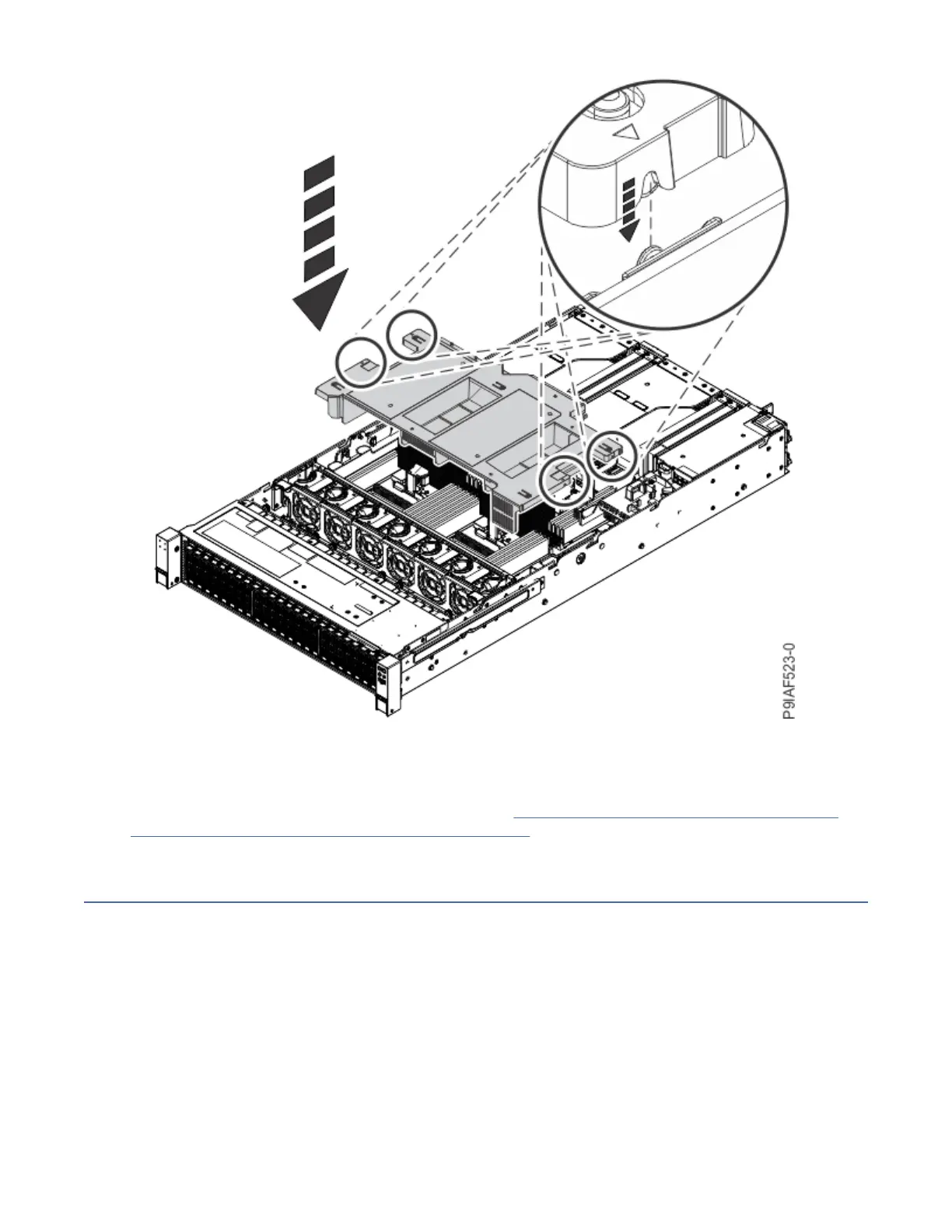

Figure 58. Replacing the air baffle
What to do next
Prepare the system for operation. For instructions, see “Preparing the 9183-22X system for operation
after you remove and replace internal parts” on page 150.
Removing and replacing a power supply in the 9183-22X system
Find information about removing and replacing power supplies in the IBM Power System IC922
(9183-22X) server.
Removing a power supply from the 9183-22X system
To remove a power supply from the system, complete the steps in this procedure.
About this task
If one of the power supplies failed on a system, the power supply can be replaced while the system is
running.
66
Power Systems: Servicing the IBM Power System IC922 (9183-22X)
