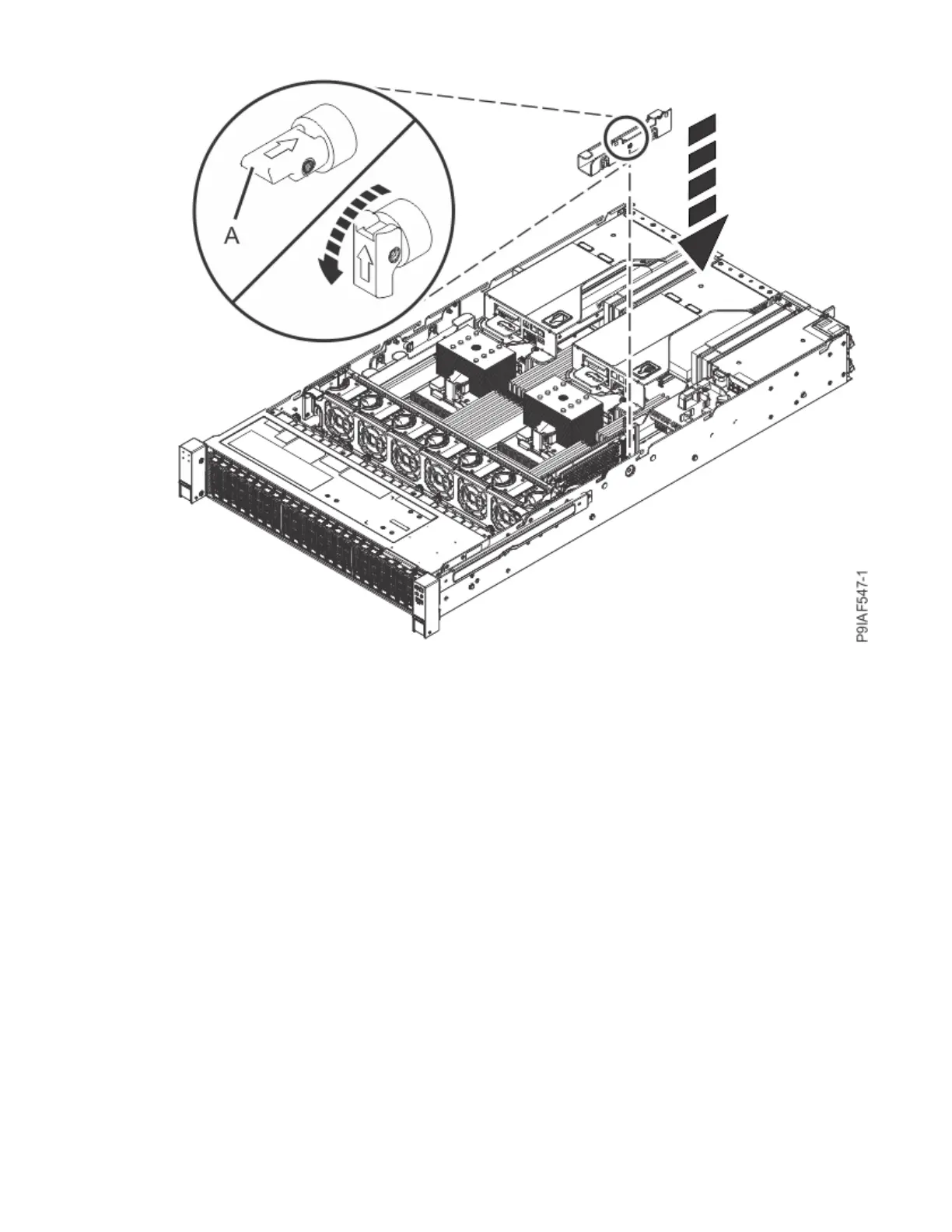

Figure 57. Replacing the right cable holder and resetting the retaining pin
c) Replace the drive cables into the drive cable holder.
6. Replace the air baffle (A) straight down into the chassis as shown in the following gure.
Ensure that the pins inside the system side walls align properly with the slots in the cover (B).
Removing and replacing parts in the 9183-22X
65
