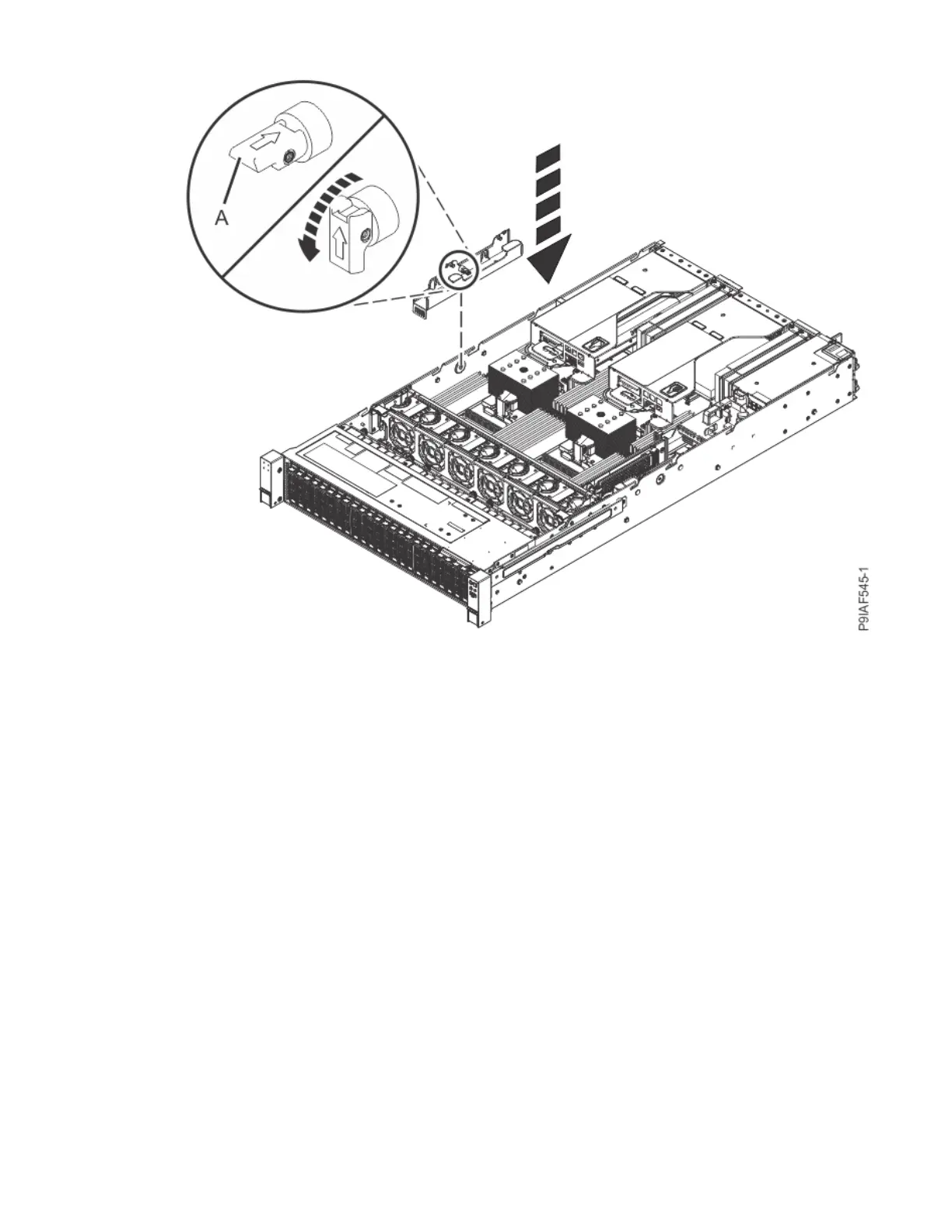

Figure 89. Replacing the left cable holder and resetting the retaining pin
c) Replace the drive cables into the drive cable holder.
28. Replace the drive cable holder on the right side of the system by using the following procedure.
a) Replace the drive cable holder in the system. Ensure that the alignment pins match the slots in the
holder.
b) Reset the retaining pin (A) to lock the holder in place as shown in the following gure.
Removing and replacing parts in the 9183-22X
