IBM IC922 - Page 150

Figure 123. Replacing the TPM card
3. Replace the drive cable holder on the right side of the system by using the following procedure.
a) Replace the drive cable holder in the system. Ensure that the alignment pins match the slots in the
holder.

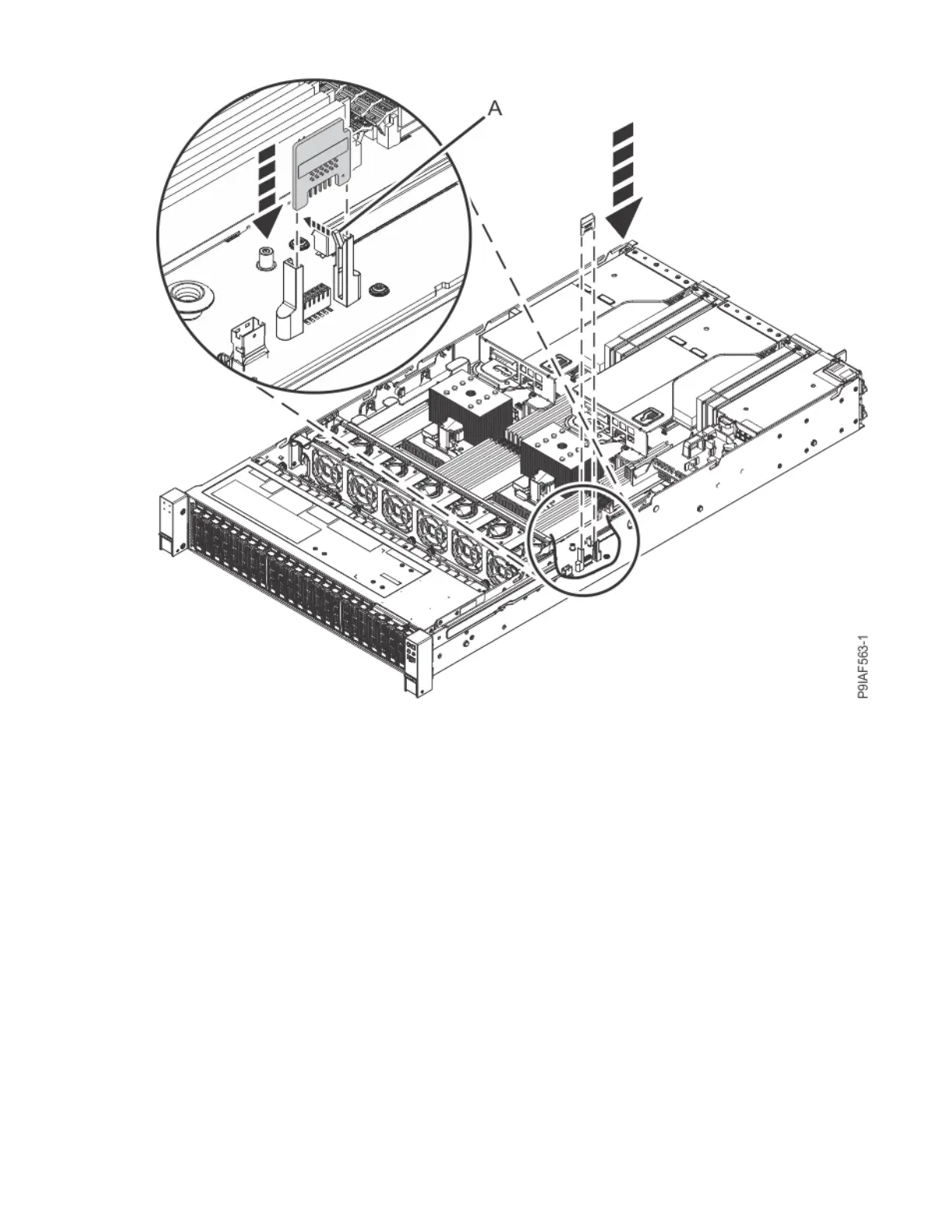

b) Reset the retaining pin (A) to lock the holder in place as shown in the following gure.
136
Power Systems: Servicing the IBM Power System IC922 (9183-22X)
