IBM IC922 - Page 22

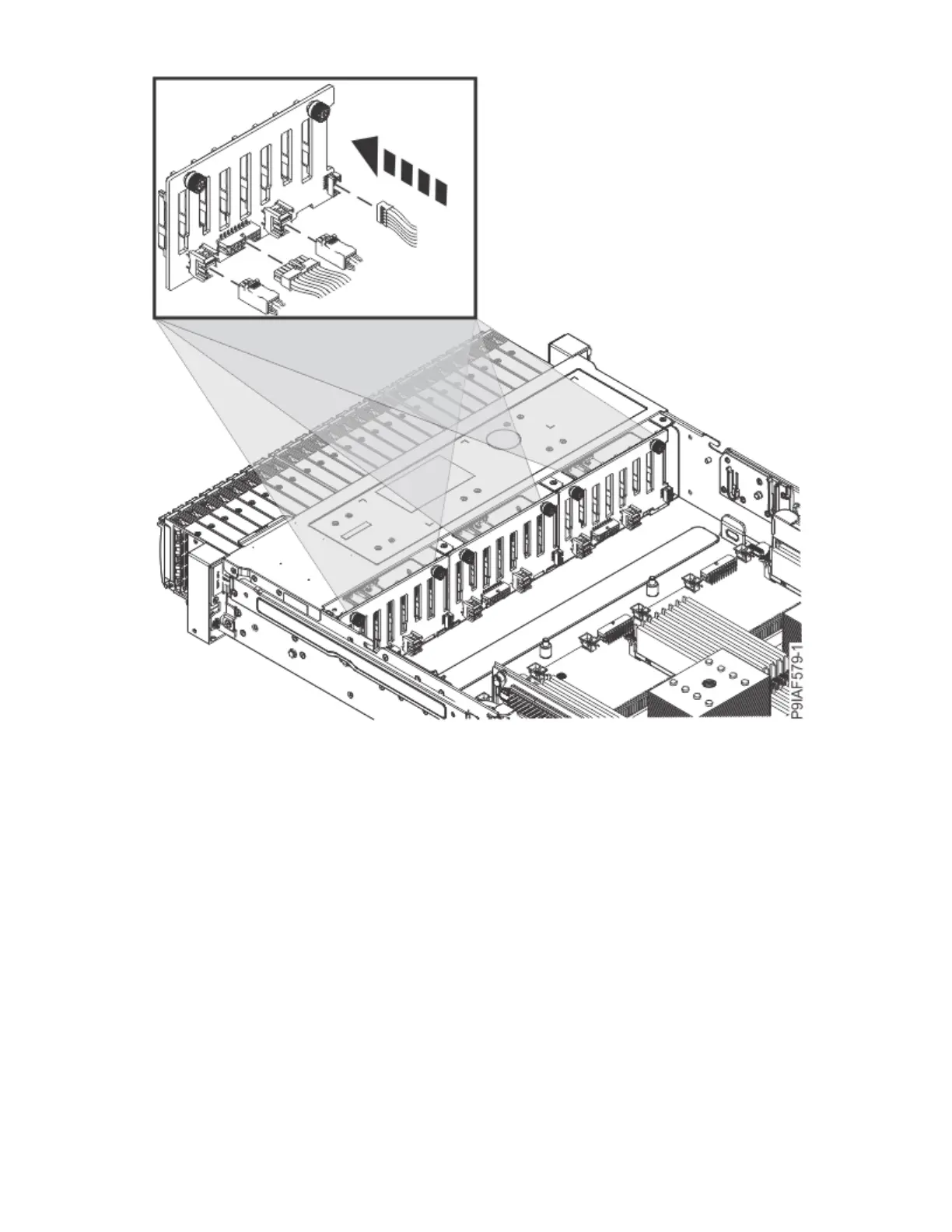

Figure 5. Connecting the drive cables to the drive backplane
5. Fully seat all the front drives into their slots as shown in the following gure.
Push drive lever (A) until the front drive is seated and the lever snaps closed.
8
Power Systems: Servicing the IBM Power System IC922 (9183-22X)
