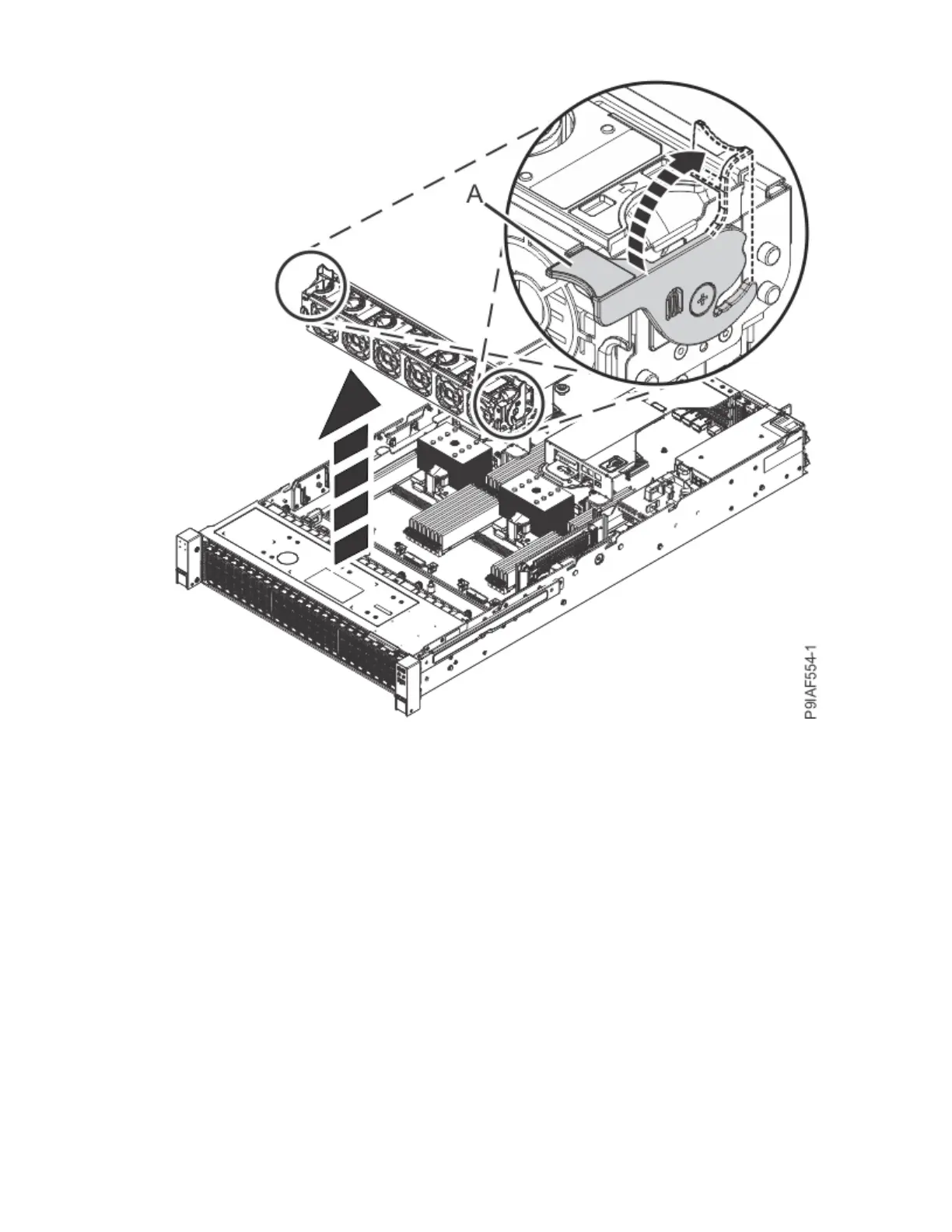

Figure 32. Removing the fan cage assembly
c) Disconnect the front drive cables from the drive backplane.
Press the cable connector latch and disconnect the front drive cable from the drive backplane as
shown in the following gure. Be sure to unlatch the cable from the connectors. Do not pull in the
cables themselves; unplug the cables by using the connector.
40
Power Systems: Servicing the IBM Power System IC922 (9183-22X)
