Figure 65. Replacing the power switch

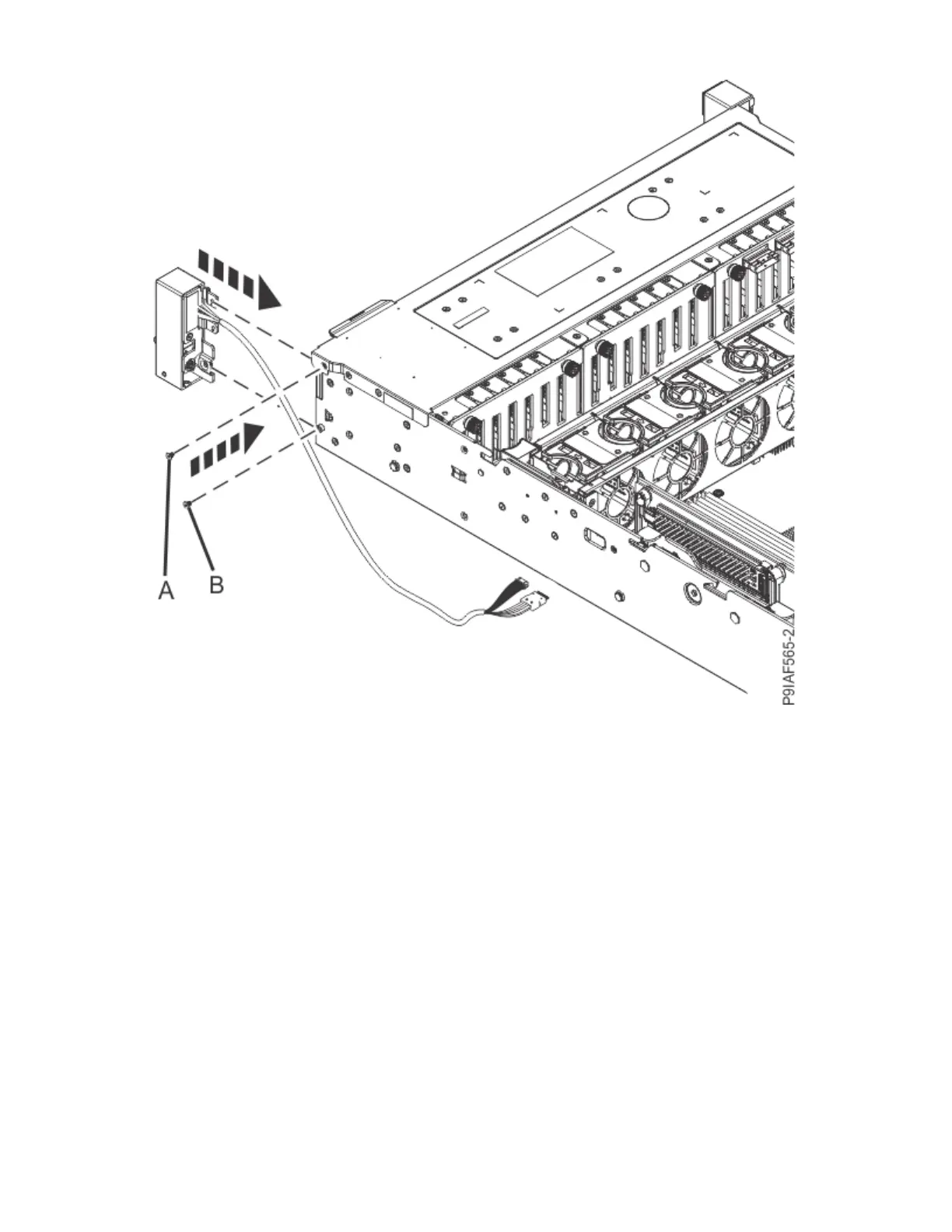

3. Feed the power switch cable and the USB cable through the opening in the side of the chassis as
shown in the following gure. Connect the power switch cable (A) and the front USB cable (B) to the
system backplane as shown in the following gure.
Removing and replacing parts in the 9183-22X
75
