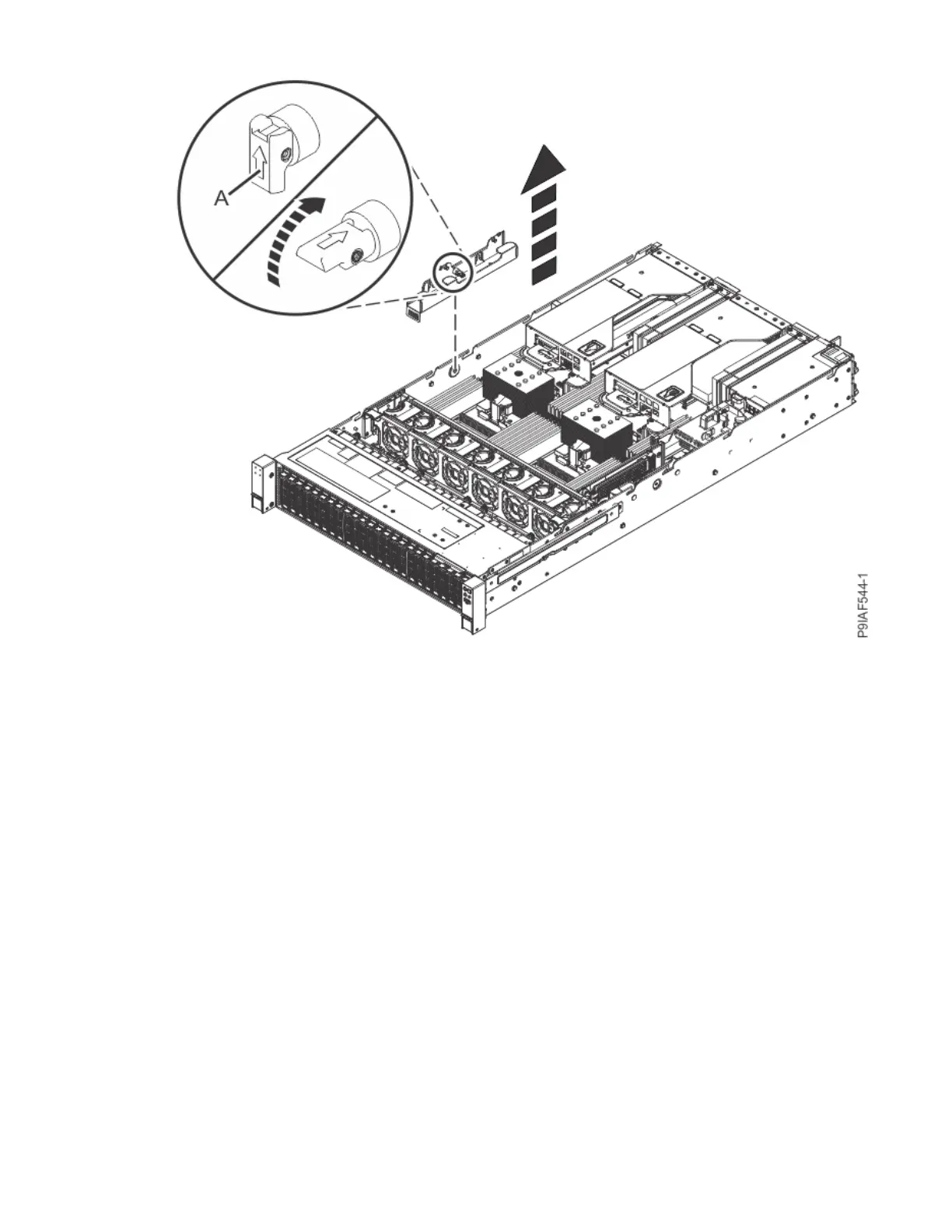

Figure 70. Retracting the retaining pin and removing the left cable holder
c) Lift the drive cable holder out of the system.
4. Remove the drive cable holder on the right side of the system by using the following procedure.
a) Remove the drive cables from the drive cable holder.
b) Retract the retaining pin (A) as shown in the following gure.
80
Power Systems: Servicing the IBM Power System IC922 (9183-22X)
