Chapter 7. Hardware management 191
Cooling Overview tab
As shown in Figure 7-24, the Cooling Overview tab displays system fan speeds
and their healthy condition. Each fan is equipped with dual motor, so A displays
the primary fan motor speed and B displays the redundant fan motor speed.
System fan speed normally operates in the range of 2,000 - 13,000 rpm.

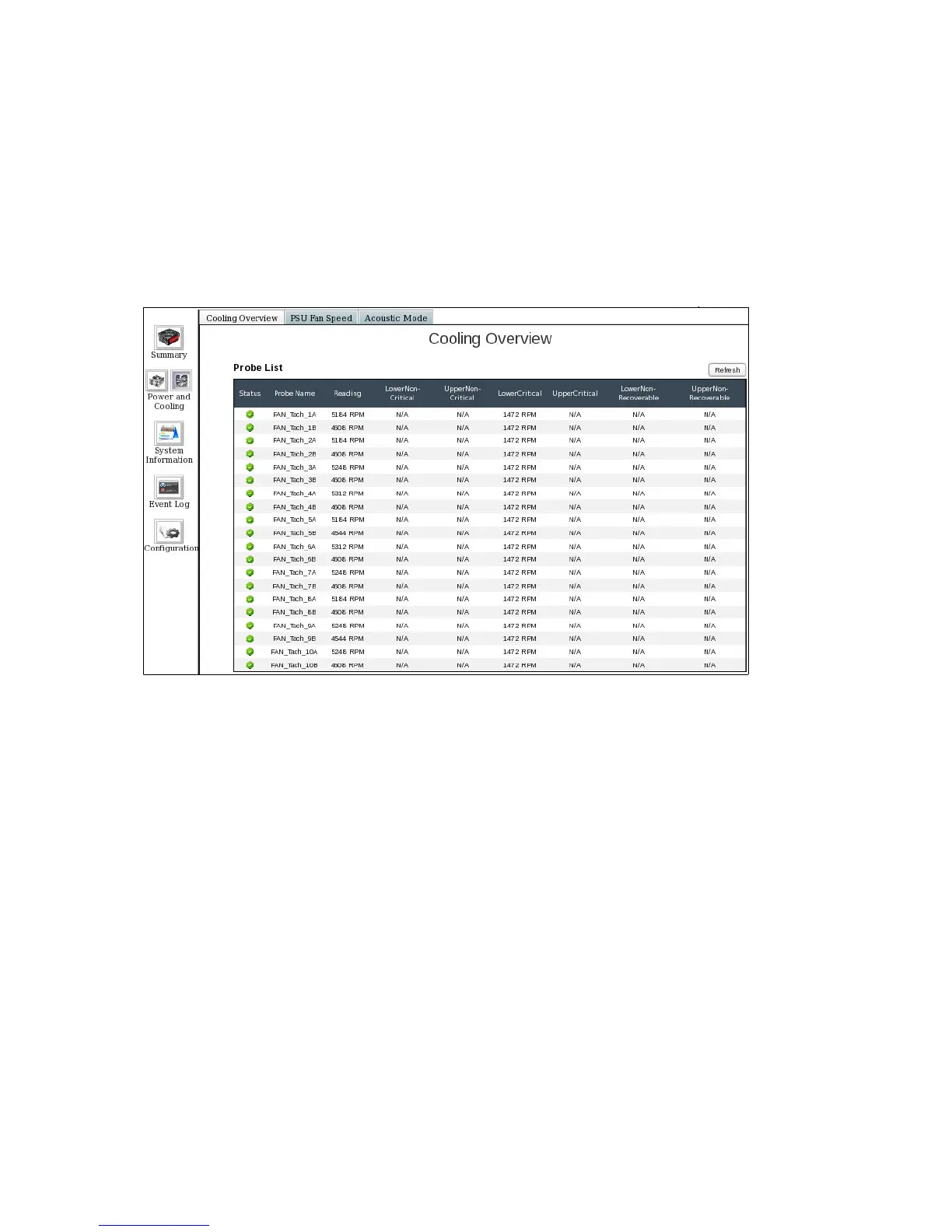

Figure 7-24 Cooling overview of system fan speeds
