180 IBM NeXtScale System Planning and Implementation Guide
7.2.1 FPC web browser interface
The FPC module web interface can be accessed by the Ethernet connection at
the rear of the chassis. The web interface provides a graphical and easy to
manage method to configure a single chassis. However, when multiple chassis
are managed, the best option is to remotely manage them through the IPMI over
LAN interface (for more information, see 7.2.2, “FPC IPMI interface” on
page 202).
Complete the following steps to access the FPC web interface:
1. Point your browser to the FPC interface URL that is defined for your FPC
module. By default, the module is configured with the static IP address
192.168.0.100/24.
2. After the login window opens, enter the user name and password, as shown
in Figure 7-15. The default user ID is USERID and default password is PASSW0RD
(where the 0 in the password is the zero character and not an uppercase
letter.)

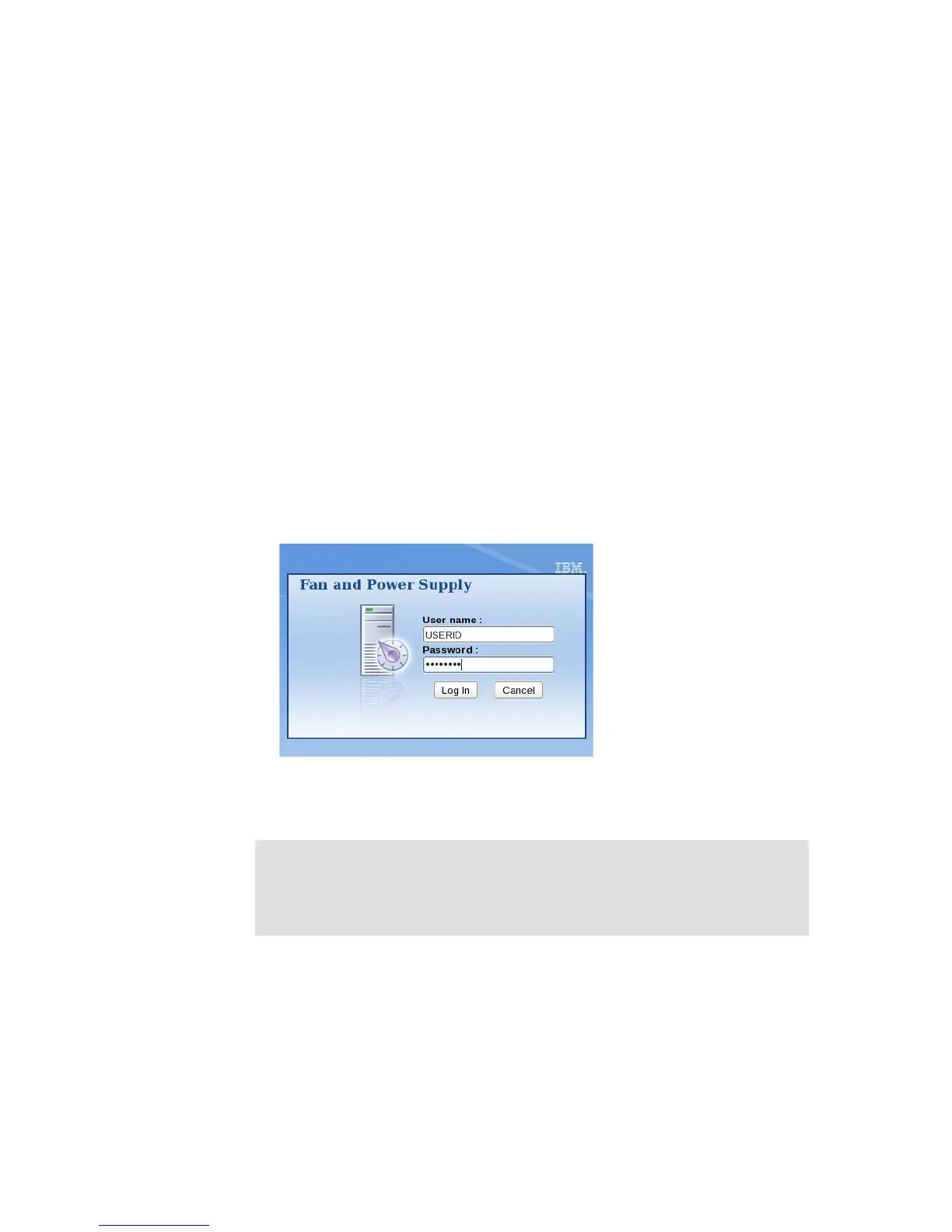

Figure 7-15 Fan and Power Controller log in page
3. Click Log in.
Note: The web browser interface supports the following minimum browser
levels:
Internet Explorer 6 or later
Firefox 2.0.x or later
