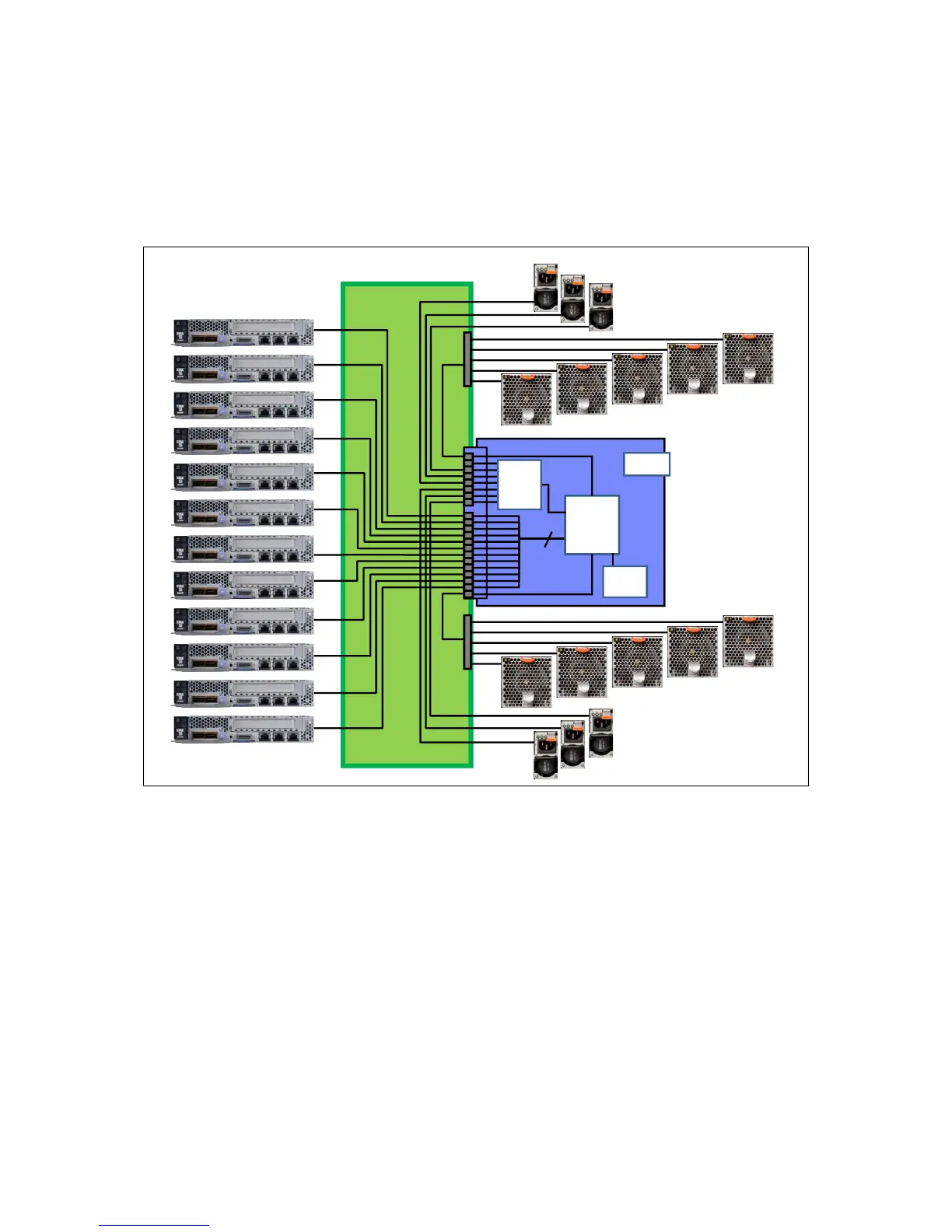

Figure 3-11 shows the connectivity of the chassis components through the
midplane.
Figure 3-11 Midplane connectivity
Midplane
Fan and Power
Controller
Servers
Power
Supplies
Fan
Modules
Power
Supplies
Fan
Modules
I2C
Mux
12
FPC
12
ARM
SOC
RJ45
I2C
Mux
USB
