Chapter 4. IBM NeXtScale nx360 M4 compute node 65

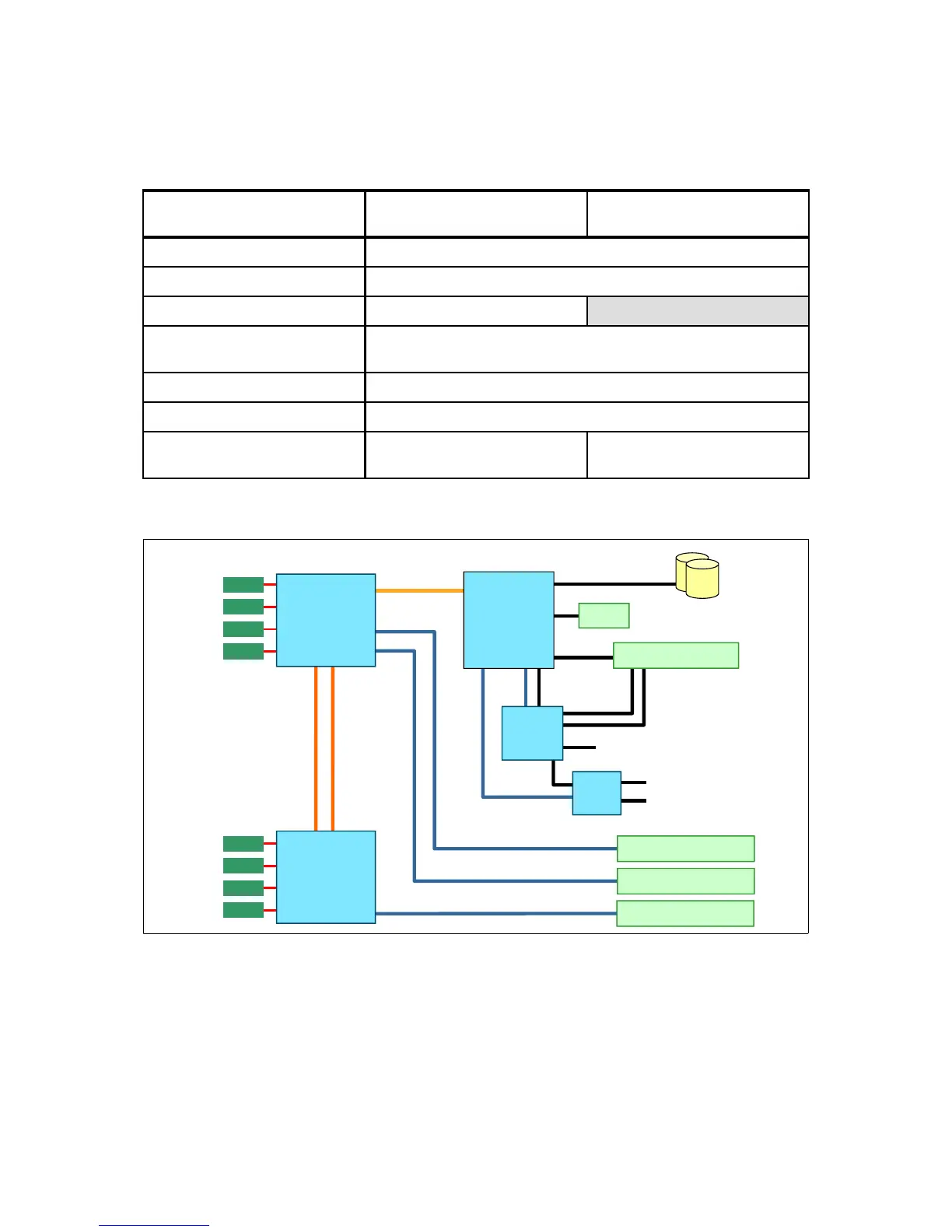

Figure 4-5 shows the IBM NeXtScale nx360 M4 building block.
Figure 4-5 IBM NeXtScale nx360 M4 system board block diagram
Intel Turbo Boost Technology Yes
Memory population 4 channels of up to 3 RDIMMs, 3 LRDIMMs, or 2 UDIMMs
Maximum memory speed Up to 1600 MHz Up to 1866 MHz
Memory RAS features ECC, Patrol Scrubbing, Sparring, Mirroring, Lockstep Mode, x4/x8
SDDC
PCIe lanes 40 PCIe 3.0 lanes
TDP values (W) 130, 115, 96, 80, 70, 60, 50 W
Idle power targets (W) 15 W or higher
12 W for low-voltage SKUs
10.5 W or higher
7.5 W for low-voltage SKUs
Xeon E5-2600
(Sandy Bridge-EP)
Xeon E5-2600 v2
(Ivy Bridge-EP)
