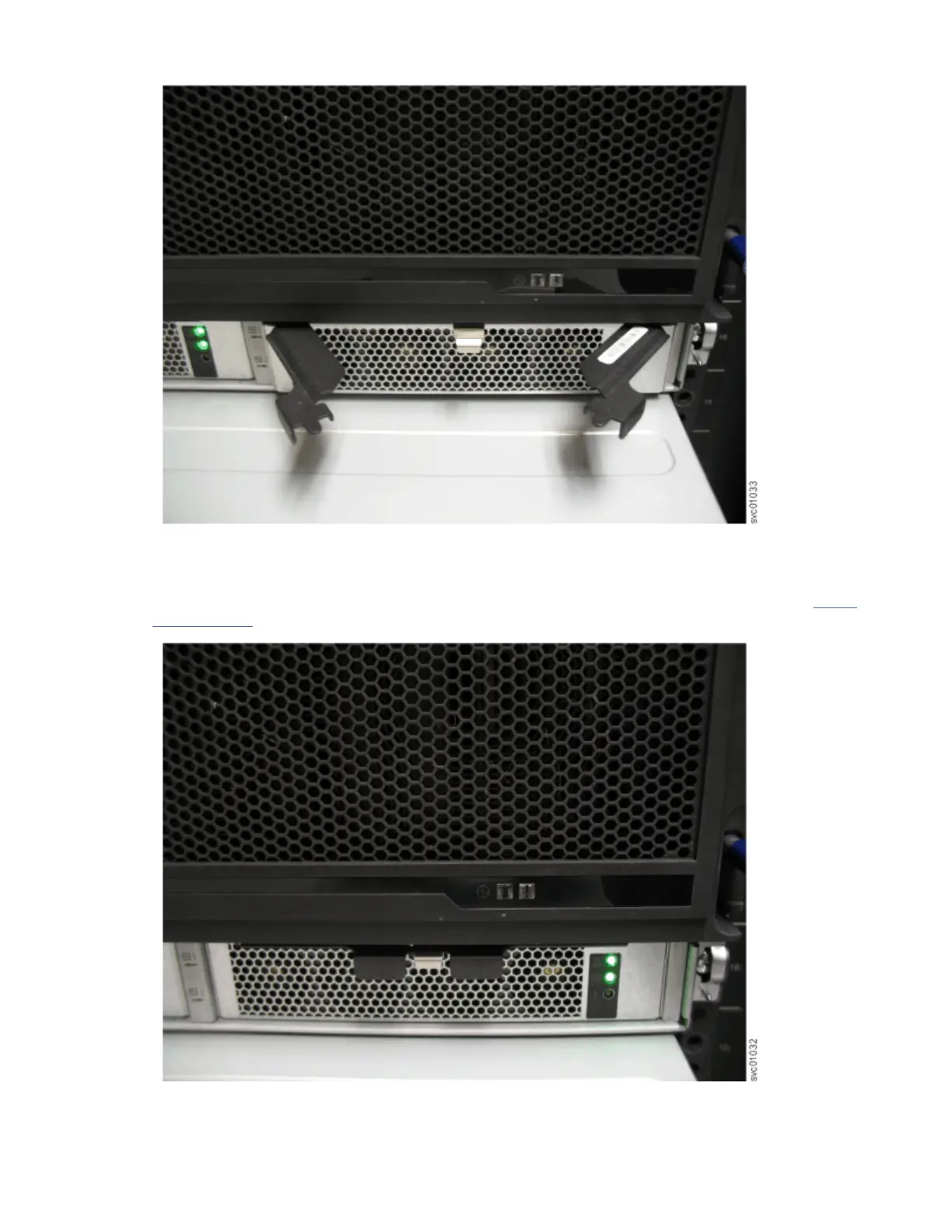

Figure 93. Install the power supply
4. Close the handles on the PSU and ensure the handle lock clicks in to place.
5. Verify that the AC input and the DC power indicators are lit on the front of the PSU, as shown in Figure
94 on page 84.
Figure 94. Power supply indicators
84
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
