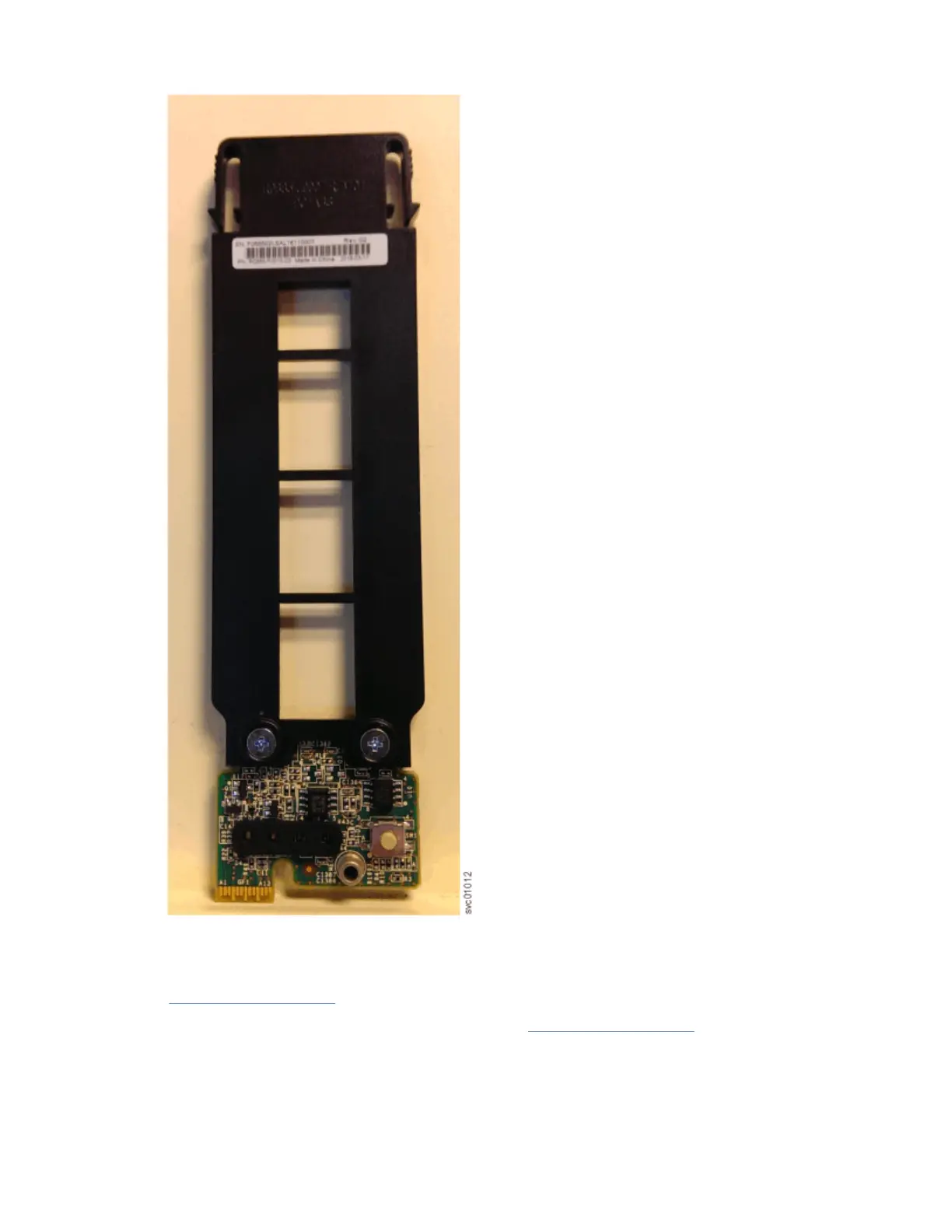

Figure 130. Display panel assembly
2. Carefully align the display panel assembly in the slot at the front of the expansion enclosure, as shown
in Figure 131 on page 121.
Ensure the display panel assembly, which is shown in Figure 130 on page 120, faces toward the
outside of the chassis.
120
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
