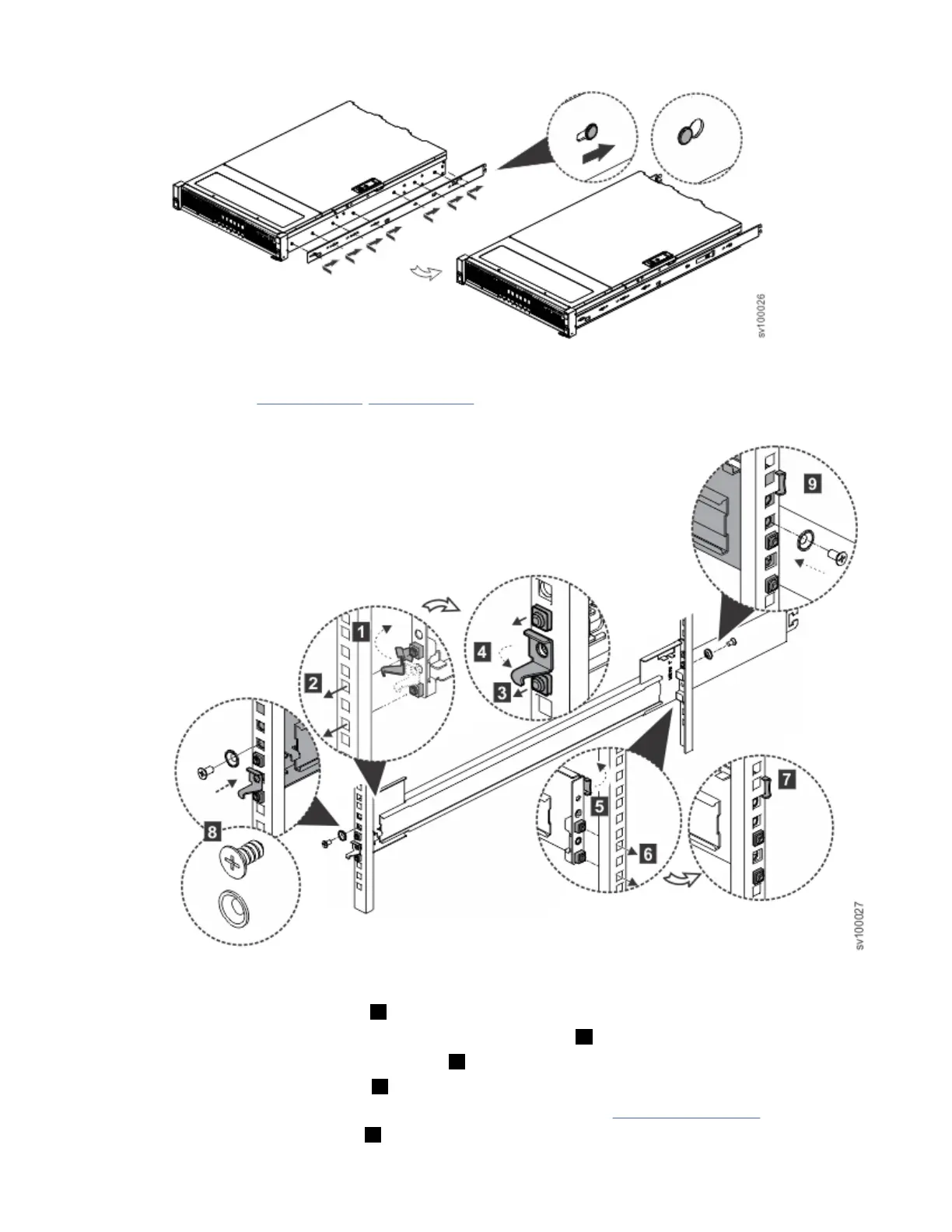

Figure 23. Attach inner rail section to chassis
5. Repeat steps “3” on page 21-“4” on page 21 for the opposite rail.
6. Install the outer section of the rail to the front frame, as shown in the following gure.
Figure 24. Install the bracket assembly to the frame
a) Open the front latch hook ( 1 ).
b) Fit the tool-less rail-mounting pin to the front rack post ( 2 ).
c) Click the rail-mounting pin into place ( 3 ).
d) Close the front latch hook ( 4 ).
7. Install the outer section of the rail to the rear frame, as shown in Figure 24 on page 22.
a) Open the rear latch hook ( 5 ).
