1 - System status LED
2 - System power LED
3 - USB port
4 - Ethernet management port
5 - Console port (RJ-45)
6 - Serial number pull-out tab
7 - 16 GbE FC ports (24)
8 - 40 GbE FCIP ports (QSFP) (2)
9 - 1/10 GbE FCIP ports (16)
The Fibre Channel ports and FCIP ports are numbered from left to right on the
faceplate, as shown in Figure 2.
1 - FC ports (16 GbE) 0 through 7
2 - FC ports (16 GbE) 8 through 15
3 - FC ports (16 GbE) 16 through 23
4 - FCIP ports (40 GbE) 0 and 1 (QSFP)
5 - FCIP ports (1/10 GbE) 2 through 9
6 - FCIP ports (1/10 GbE) 10 through 17
You can have two Trunk groups on a fully licensed switch. Group 1 consists of FC
ports 0 through 7 and group 2 is ports 8 through 15.
Nonport side of the switch
Figure 3 on page 5 shows the nonport side of the switch, which contains two
power supply FRUs and three fan FRUs.
7 8 9
1
2
53 4 6
b42r001

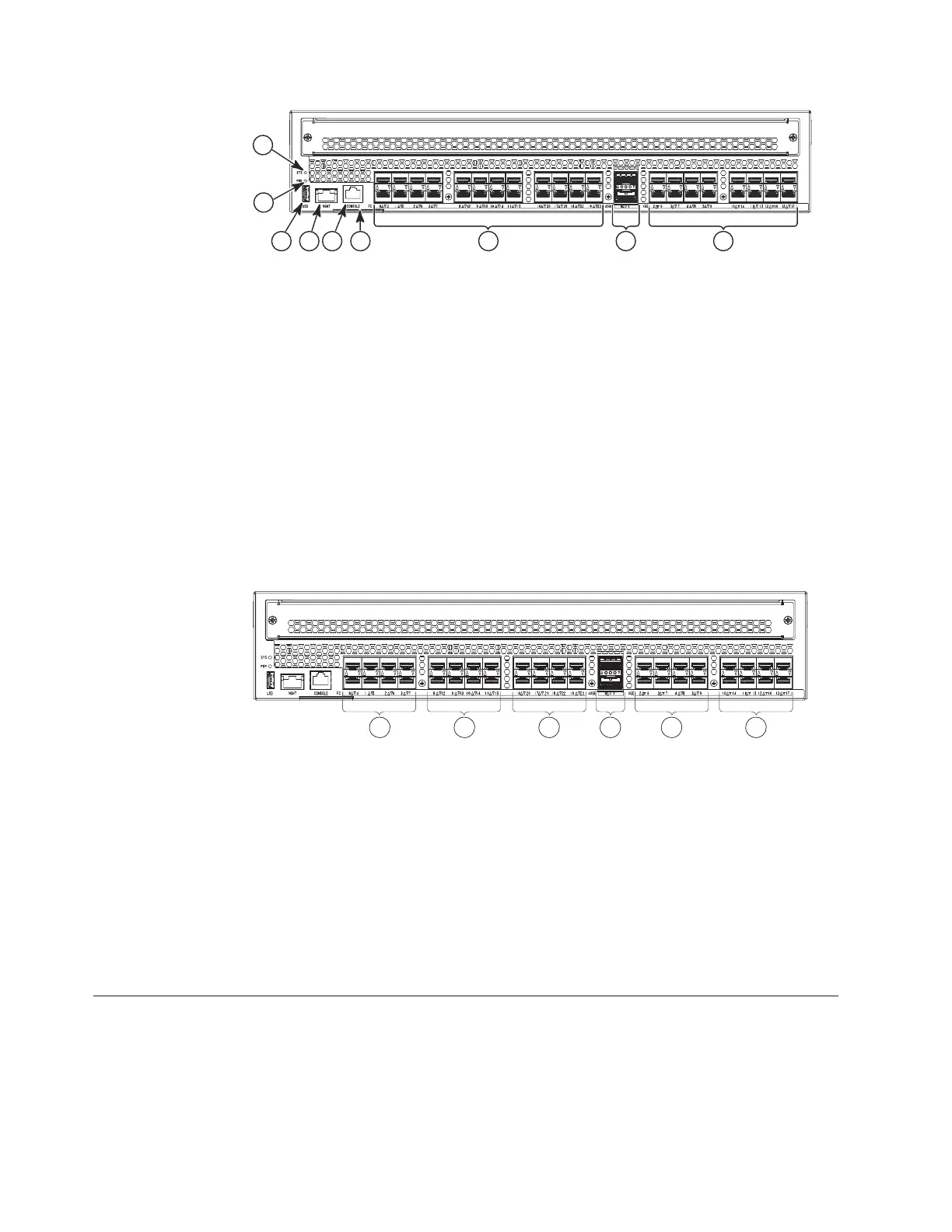

Figure 1. Port side view of the SAN42B-R
1 2 3 4 5 6
b42r002
Figure 2. Port numbering in the switch
4 SAN42B-R Installation, Service, and User Guide
