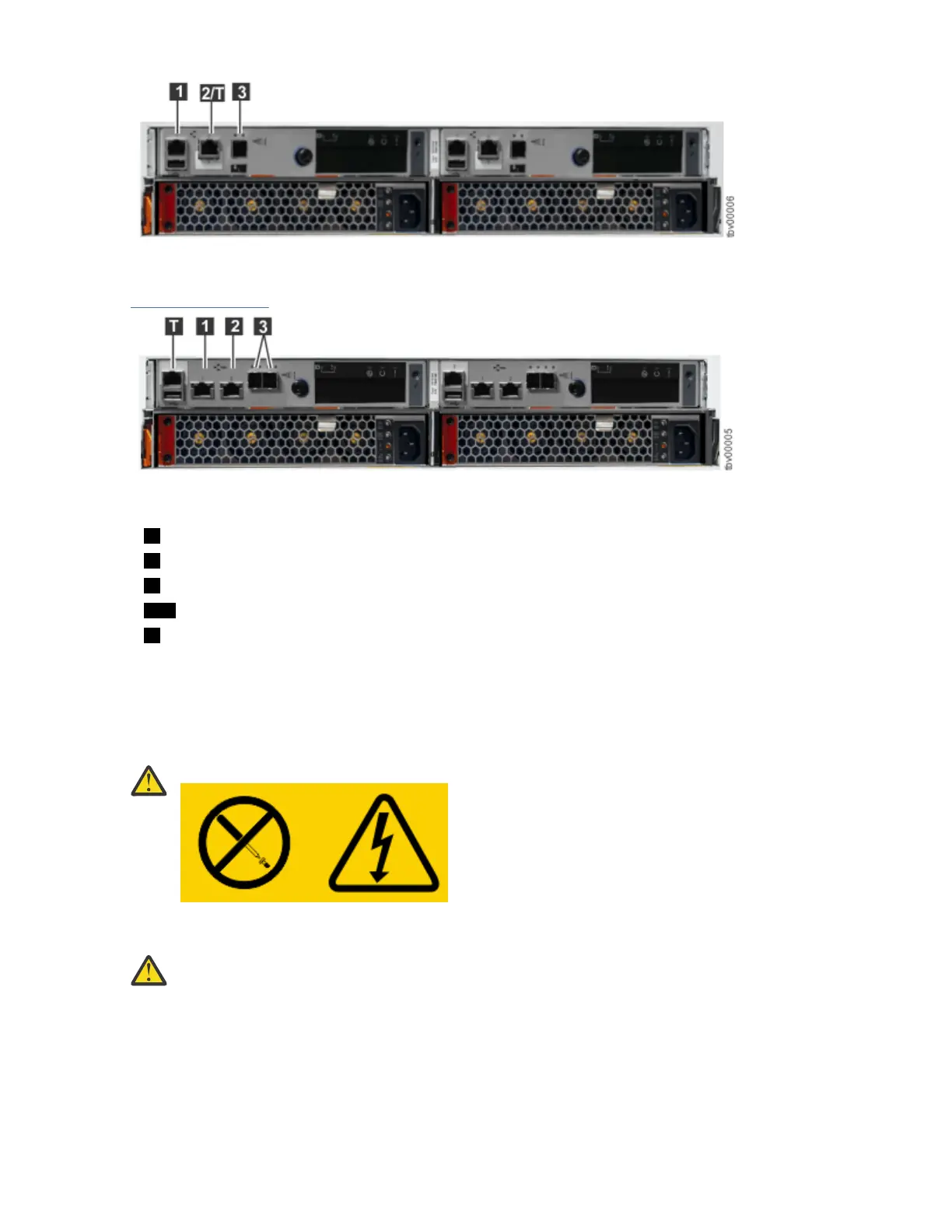

Figure 6. Data ports on the rear of the Storwize V5010E control enclosure
Figure 7 on page 16 shows the data ports on the back of a Storwize V5030E control enclosure.
Figure 7. Data ports on the rear of the Storwize V5030E control enclosure
• T Technician port
• 1 Ethernet port 1
• 2 Ethernet port 2
• 2/T Ethernet port 2 / Technician port
• 3 SAS expansion ports
Direct current power supply units
Some enclosure models run in a direct current (DC) power environment rather than the alternating
current (AC) environment required by the other models in the range.
This topic describes the additional information you need to know when using the DC power models.
DANGER:
Hazardous voltage, current, or energy levels are present inside any component that has this label
attached. Do not open any cover or barrier that contains this label. (L001)
DANGER: When working on or around the system, observe the following precautions:
Electrical voltage and current from power, telephone, and communication cables are hazardous.
To avoid a shock hazard:
• If IBM supplied a power cord(s), connect power to this unit only with the IBM provided power
cord. Do not use the IBM provided power cord for any other product.
• Do not open or service any power supply assembly.
• Do not connect or disconnect any cables or perform installation, maintenance, or reconguration
of this product during an electrical storm.
16 IBM Storwize V5000E : Storwize V5000E Quick Installation Guide
