1 Inner connector on upper CMA
2 Connector base on inner rail member
3 Outer connector on upper CMA
4 Connector base on outer rail member
5 Support rail connector on upper CMA
6 Connector base on outer rail member
2. Install the inner connector of the upper CMA assembly ( 1 ) to the inner member of the left support rail
( 2 ), as shown in Figure 47 on page 52.

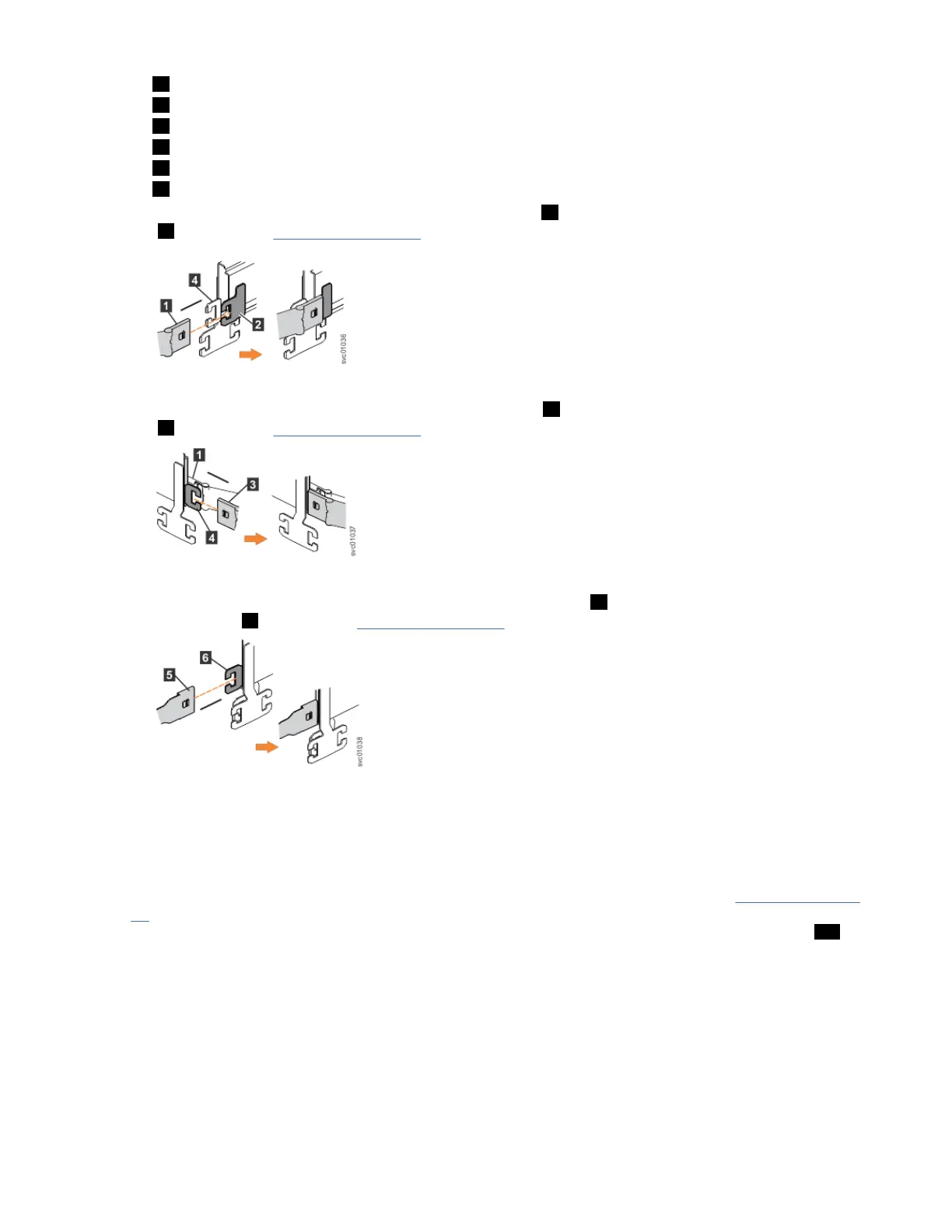

Figure 47. Install the inner connector of the upper CMA to the inner member of the support rail
3. Install the outer connector of the upper CMA assembly ( 3 ) to the outer member of the left support rail
( 4 ), as shown in Figure 48 on page 52.
Figure 48. Install the outer connector of the upper CMA to the outer member of the support rail
4. Attach the support rail connector on the upper CMA assembly ( 5 ) to the connector base on the right
support rail ( 6 ), as shown in Figure 49 on page 52.
Figure 49. Attach the support rail connector of the upper CMA to the right support rail
Ensure the cable-management arm connector attaches securely to the hooks on the rails.
Installing the lower CMA assembly
Note: The procedure for attaching the lower CMA assembly is the same as the procedure to attach the
upper CMA assembly. However, the connector locations are reversed. For comparison, Figure 50 on page
53 shows the upper and lower CMA assemblies as they are aligned to the support rails. The support rail
connector of the upper CMA attaches to the right rail. The support rail connector of the lower CMA 11
attaches to the left rail.
52
IBM Storwize V5000E : Storwize V5000E Quick Installation Guide
