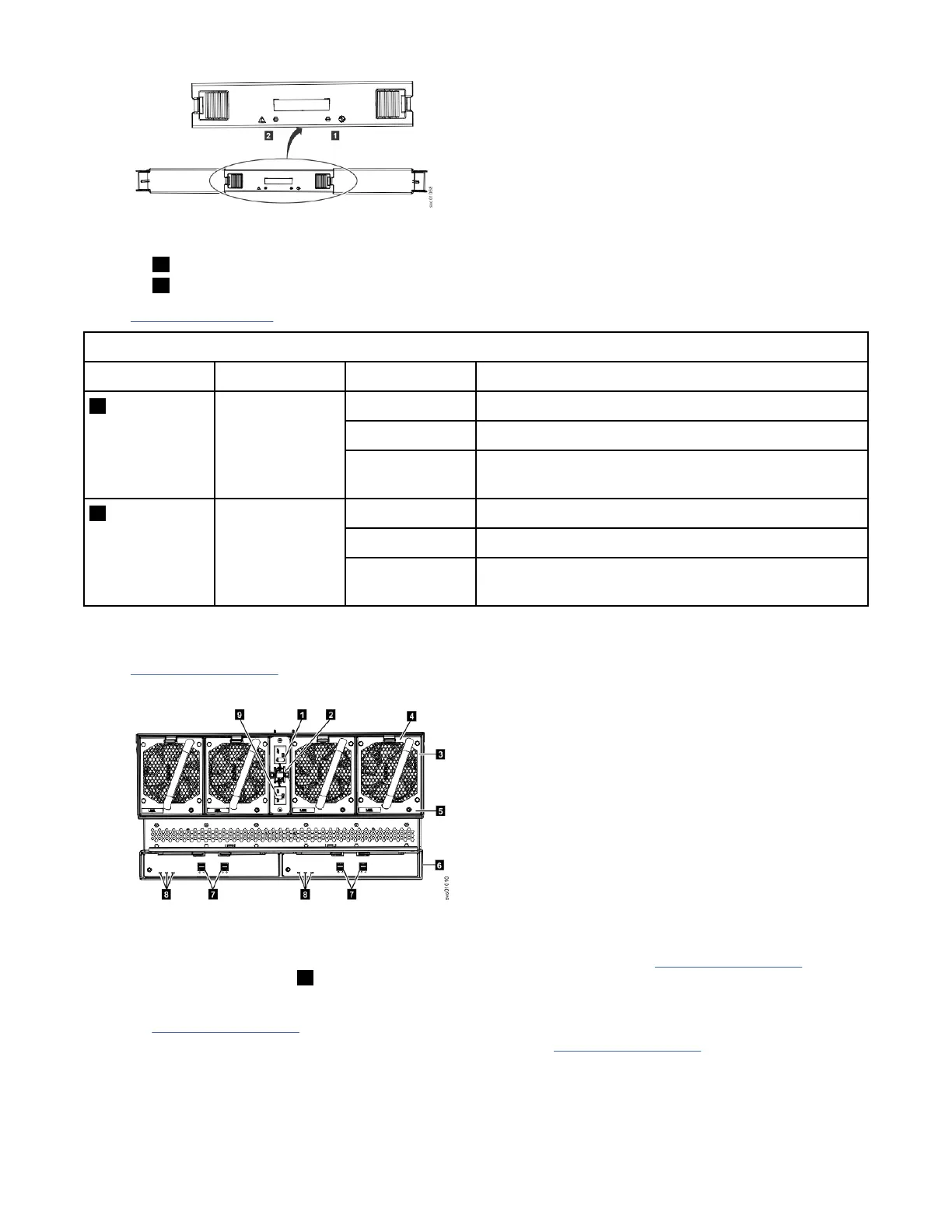

Figure 64. LEDs on a secondary expansion module
1 Online indicator
2 Fault indicator
Table 32 on page 62 describes the meaning of the LEDs on each secondary expansion module.
Table 32. LED indicators on secondary expansion modules
Function Color Status Description
1 Power Green On The secondary expansion module is receiving power.
Flashing Not used.
Off The secondary expansion module is not receiving
power.
2 Fault Amber On Not used.
Flash The secondary expansion module is being identied.
Off The secondary expansion module is operating
normally.
LEDs on the rear of the expansion enclosure
Figure 65 on page 62 shows the rear view of a 2072-92F expansion enclosure. LEDs on the rear of the
enclosure provide information about each fan module, each expansion canister, and SAS links.
Figure 65. LEDs on the back of the expansion enclosure
The expansion enclosure has four fans. Each fan has one LED; for example, Figure 65 on page 62 shows
the location of the LED ( 5 ) for fan number four. When a fan is operating normally, the LED is not lit. If a
fault is detected, the amber LED is lit.
As Figure 65 on page 62 also shows, the expansion enclosure contains two expansion canisters. Each
expansion canister contains its own set of LEDs, as shown in Figure 66 on page 63. The LEDs provide
status information about the expansion canister itself and the SAS connections.
62
