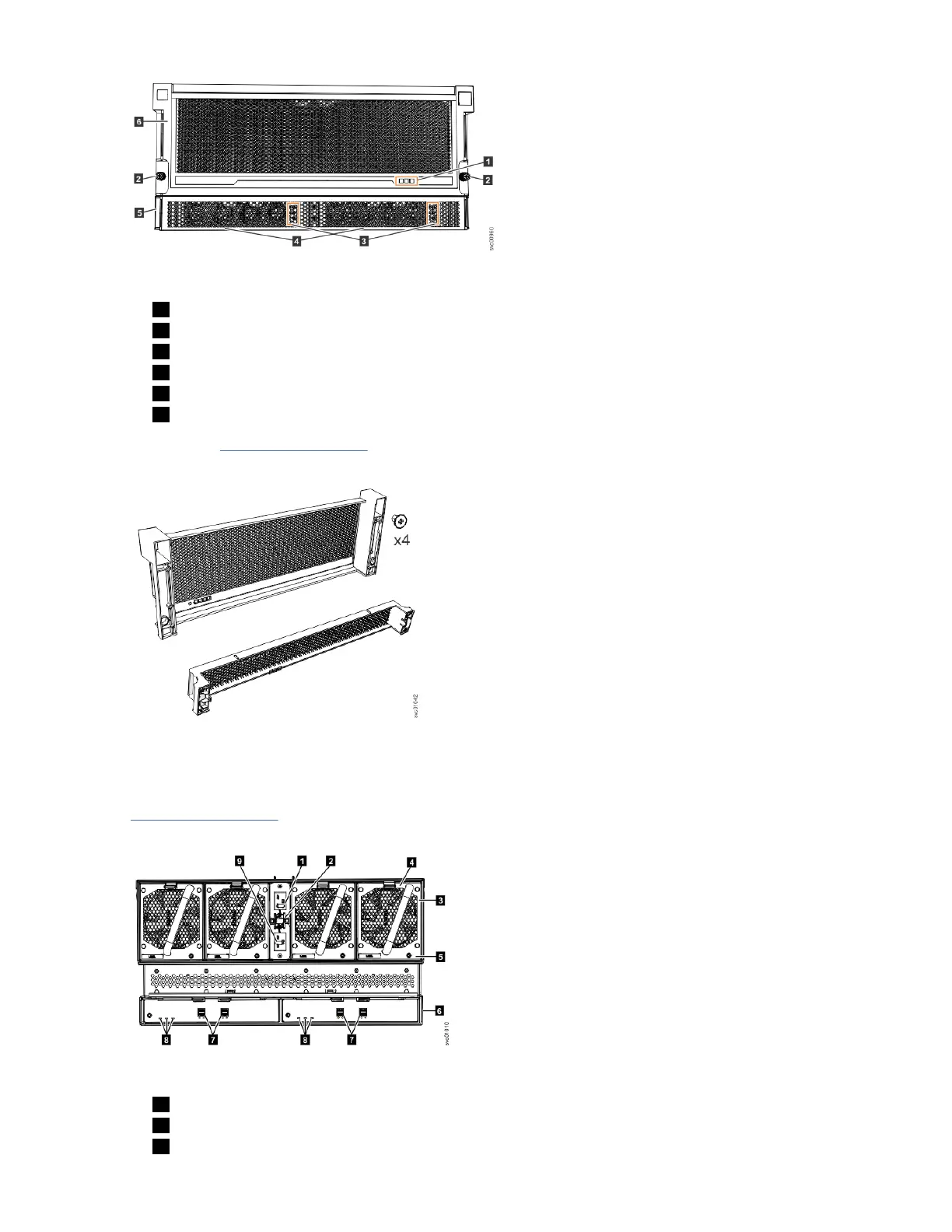

Figure 19. Features on the front of the 5U expansion enclosure
1 Display panel indicators
2 Rack retention thumb screws
3 Power supply unit indicators
4 Power supply units (PSUs)
5 PSU fascia (1U)
6 Front fascia (4U)
However, as Figure 20 on page 40 shows, the 4U and 1U fascias are packaged separately. You must
attach them to the front of the 5U expansion enclosure as part of the initial installation process.
Figure 20. Front fascia of the 5U expansion enclosure
Components on the rear of the enclosure
Figure 21 on page 40 shows the components on the rear of the 5U expansion enclosure. Four fan
modules and two expansion enclosures are accessible from the back of the enclosure.
Figure 21. Features on the rear of the 5U expansion enclosure
1 Power cable connector for PSU 2
2 Power cable retention clamps
3 Fan module
40
IBM Storwize V5000E : Storwize V5000E Quick Installation Guide
