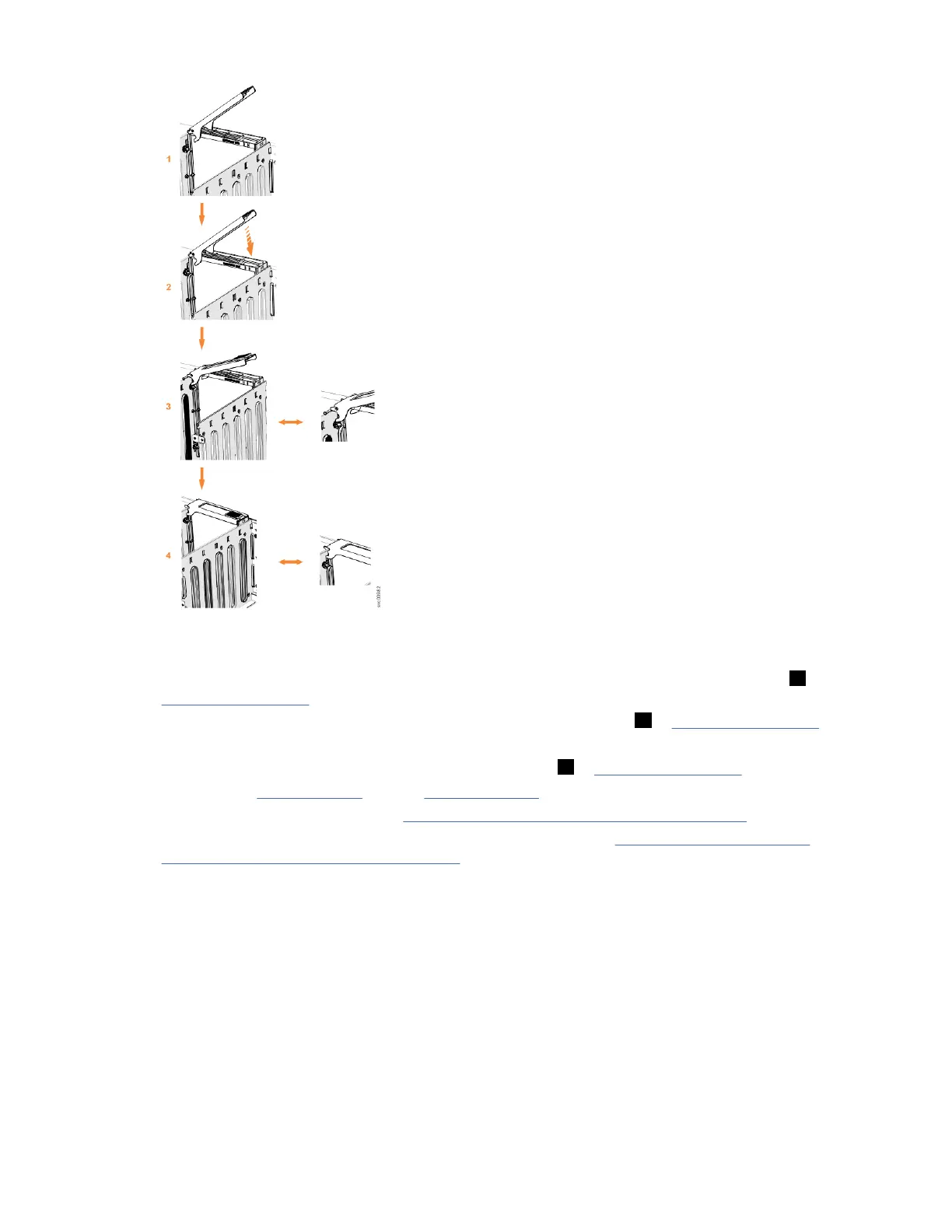

Figure 38. Replace the drive
7. Gently push the drive down until it stops and the bottom of the latch is aligned with the top of the
partition. Ensure that the handle is not open more than 45 degrees from the drive carrier. ( 2 in
Figure 38 on page 48).
8. Rotate the handle down to lock the drive assembly into the chassis ( 3 in Figure 38 on page 48).
9. Ensure the toe on the bottom of the latch is fully engaged with the partition in the chassis.
10. Ensure that the top toe of the latch is also fully engaged ( 4 in Figure 38 on page 48).
11. Repeat steps “4” on page 47 through “10” on page 48 for each drive you are replacing.
12. Replace the cover, as described in “Installing or replacing the top cover” on page 48.
13. Slide the expansion enclosure back into the rack, as described in “Installing or replacing a 5U
expansion enclosure in a rack ” on page 49.
Installing or replacing the top cover
You can replace the top cover on a 5U expansion enclosure during the installation process or after you
complete a service task.
Before you begin
Important: You can install the cover while the expansion enclosure is powered on. To maintain operating
temperature, replace the cover within 15 minutes of completing other service tasks. When the cover is
removed, the reduction in airflow through the enclosure might cause the enclosure or its components to
shut down to protect from overheating.
About this task
To install or replace the top cover on the 5U expansion enclosure, complete the following steps.
48
IBM Storwize V5000E : Storwize V5000E Quick Installation Guide
