2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables (see “Turning off the server” on page 27).
Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see “Handling static-sensitive devices” on page 39.
3. Carefully turn the server on its side so that it is lying flat, with the cover facing
up.
Attention: Do not allow the server to fall over.
4. Unlock and remove the left-side cover (see “Removing the left-side cover” on
page 60).

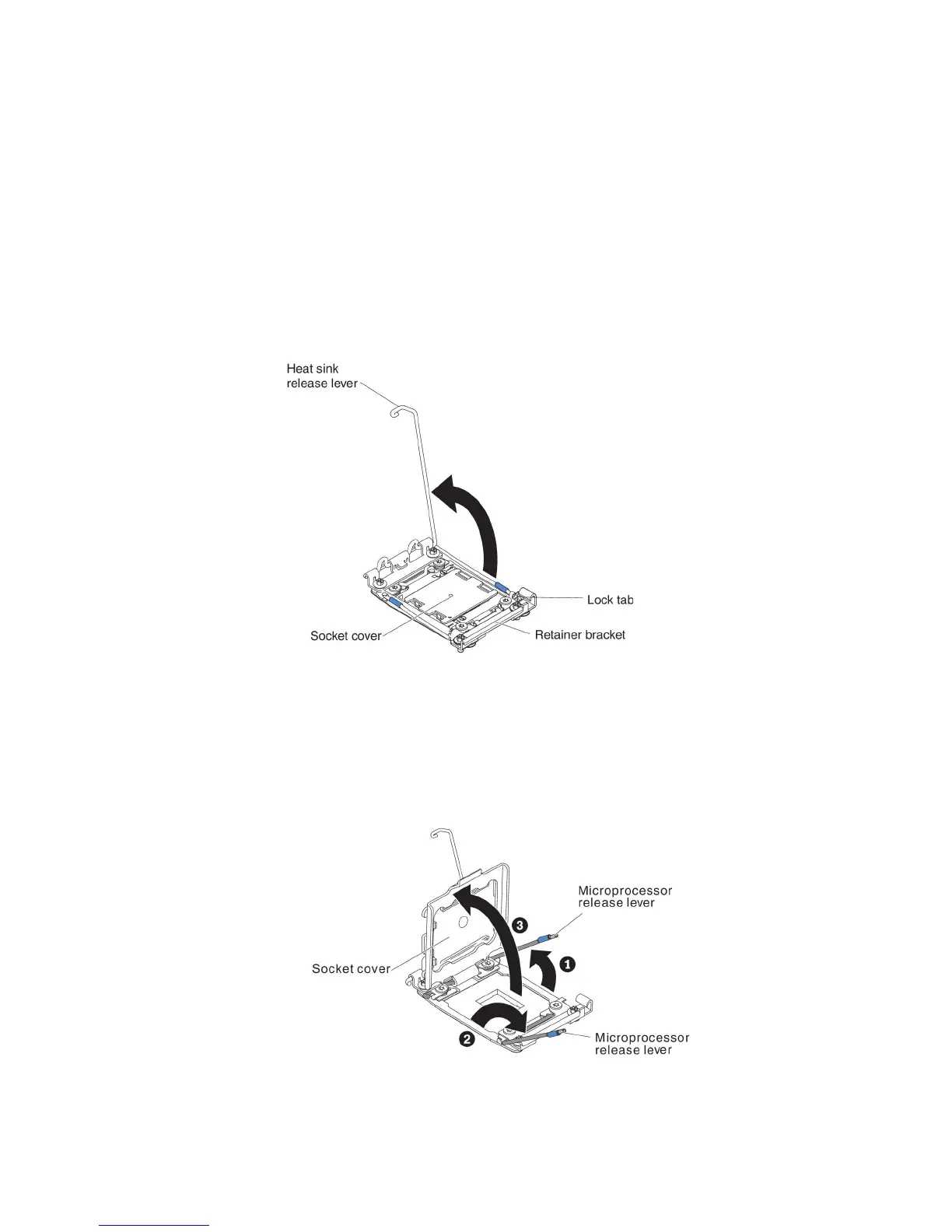

5. Locate microprocessor socket 2 on the microprocessor 2 expansion board.
6. Rotate the heat sink retention module release lever to the open position.
7. Open the microprocessor socket release levers and retainer:
a. Identify which release lever is labeled as the first release lever to open and
open it.
b. Open the second release lever on the microprocessor socket.
c. Open the microprocessor retainer.
Attention: Do not touch the connectors on the microprocessor and the
microprocessor socket.
8. Install the microprocessor on the microprocessor socket:
100 IBM System x3500 M4 Type 7383: Installation and User’s Guide
