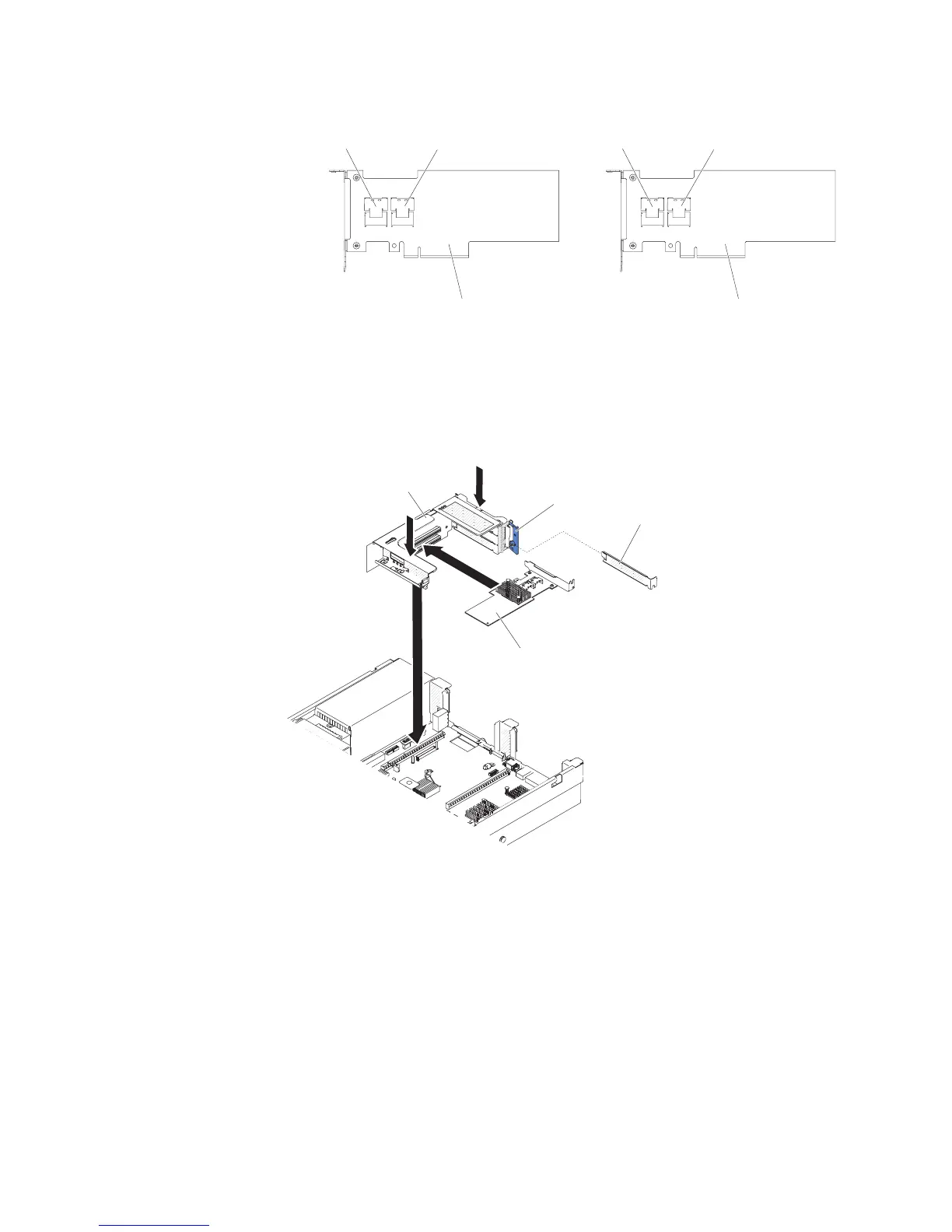

RAID adapter
Connector for
drive bays 24-27
signal cable
Connector for
drive bays 28-31
signal cable
RAID adapter
Connector for
drive bays 16-19
signal cable
Connector for
drive bays 20-23
signal cable
c. Connect a SAS signal cable that comes with the option kit to the RAID
adapter connector for drive bays 24-27.
d. Connect a SAS signal cable that comes with the option kit to the RAID
adapter connector for drive bays 28-31.
12. Align and install the PCI riser-card assembly 2 in the server (see “Installing a
PCI riser-card assembly” on page 56).
Adapter
Expansion-slot
cover
Bracket
PCI riser-card
assembly
13. Route the cables underneath the cable retention.
94 System x3650 M4 Type 7915: Installation and User’s Guide
